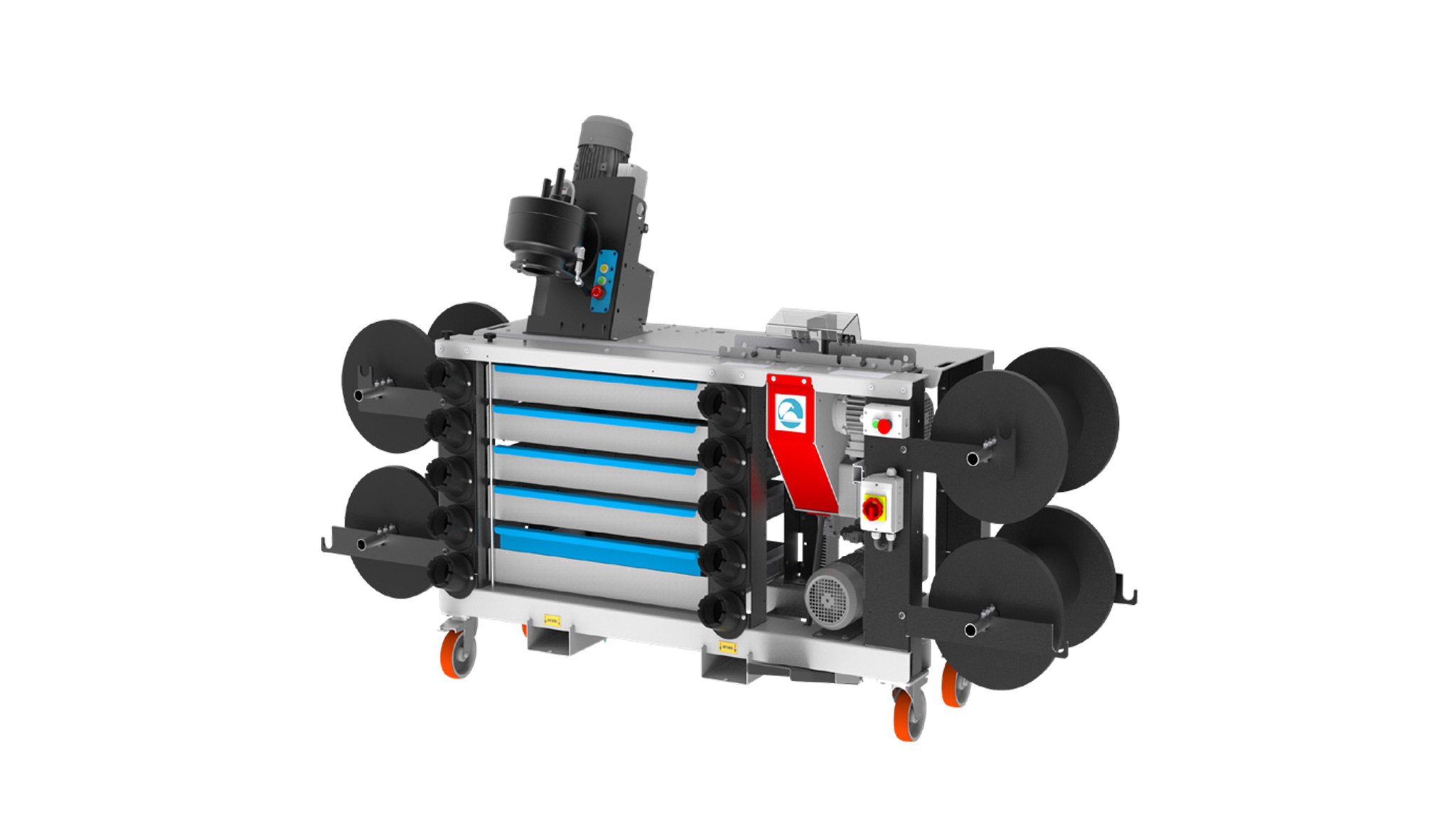

Mobile Workshop
On-Site Repair
2-IN-1 Mobile Solution
KEY FEATURES:
- Mobile Solution
- 2-in-1 cutting and crimping
- Rotative Head
- Integrated cutting machine
- Scalloped blade for efficient cuts
- Built-in pedal and dust collector
- Storage for hoses, fittings and dies
INDUSTRIES:
 Hydraulic |
Technical Specifications
| VERSION 1″ 1/4 | VERSION 2″ | |
| CAPACITY* | 4 ws: 1”1/4 max. | 4 ws: 2”max. |
| CRIMP FORCE | 137t | 240t |
| COMPLETE OPENING | 108 mm (4.252”) | 118 mm (4.646”) |
| OPENING WITH DIES | +28 mm (+1.102 ”) | +38 mm (1.496”) |
| MASTER DIE LENGTH | 75 mm (2.953”) | 100 mm (3.937”) |
| MOTOR | 2.2 kW (crimping machine) 3 kW (stand type cutting machine) |
|
| VOLTAGES | 220/240 V-1 Ph-50 Hz 220/240 V-1 Ph-60 Hz 380/415 V-3 Ph + N-50 Hz |
|
| MACHINE DIMENSIONS | 2520 x 900 x 1670 mm (99 x 35 x 66”) |
2487 x 810 x 1370 mm (98 x 32 x 54”) |
| MACHINE WEIGHT | 382 kg (842 lb) | 433 kg (955 lb) |
| STANDARD DIES | 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51 | 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70 |
* Indicative capacities depending on hose and fitting type
Add-Ons
 |
||||
| Aluminium Quick Change Gun |
Version for Hoses 2" Max.
Version for Hoses 2″ Max.
Documentation
| Mobile Workshop 2″ 4WS | Mobile Workshop 1-1.4 |
