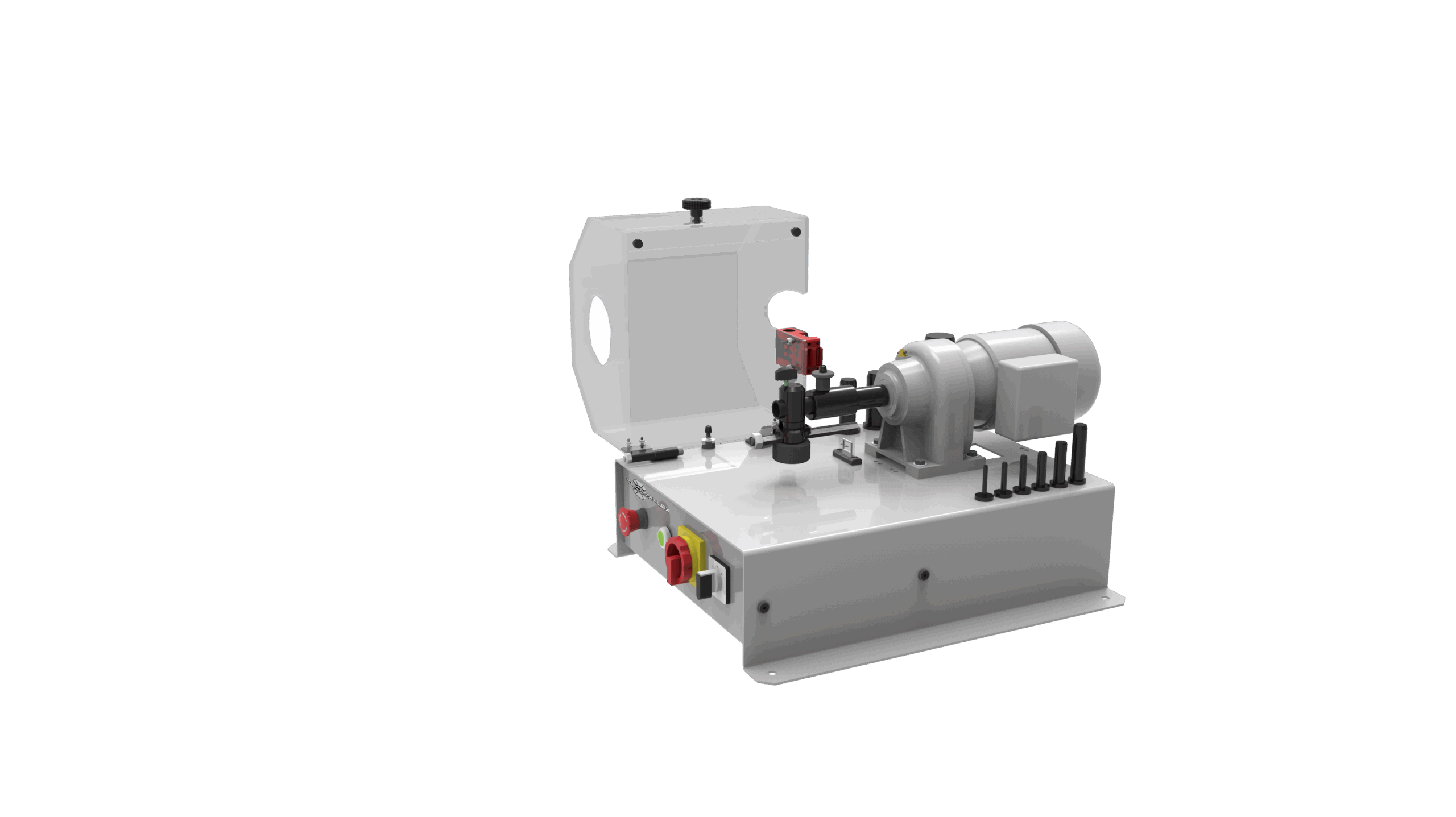

S SKIVE 100
Small Service Workshop
Benchtop Skiving
KEY FEATURES:
- Plug’n skive system
- Compact & stable
- Safety switch on the cover
- Good visibility
- Tool storage included
- Foot pedal drive with emergency stop
- 2-way rotation
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY | 2 WB: 2″ max 4 WS: 2″ max |
| ROTATION SPEED | 100 rpm |
| MOTOR | 0.25 KW |
| VOLTAGES | 220/240 V, 1Ph, 50Hz 380/415 V, 3Ph, 50 Hz 220/240 V, 1Ph, 60 Hz 380/415 V, 3Ph, 60 Hz |
| DIMENSIONS | 500 x 660 x 360 mm (19 x 26 x 14“) |
| PACKAGING | 800 x 600 x 700 mm (31 x 24 x 28″) |
| NET WEIGHT | 45 kg (99 lb) |
| GROSS WEIGHT | 55 kg (121 lb) |
| TECHNICAL FEATURES | Tools available (to be ordered separately) ESE, IS, ESP1, ESP2 |
Optional
 |
||||
| CME Electrical Footswitch |
Add-Ons
 |
 |
 |
 |
|
| Tool Kit IS | Tool Kit ESE | Tool Kit ESP 1 | Tool Kit ESP 2 |
Video
