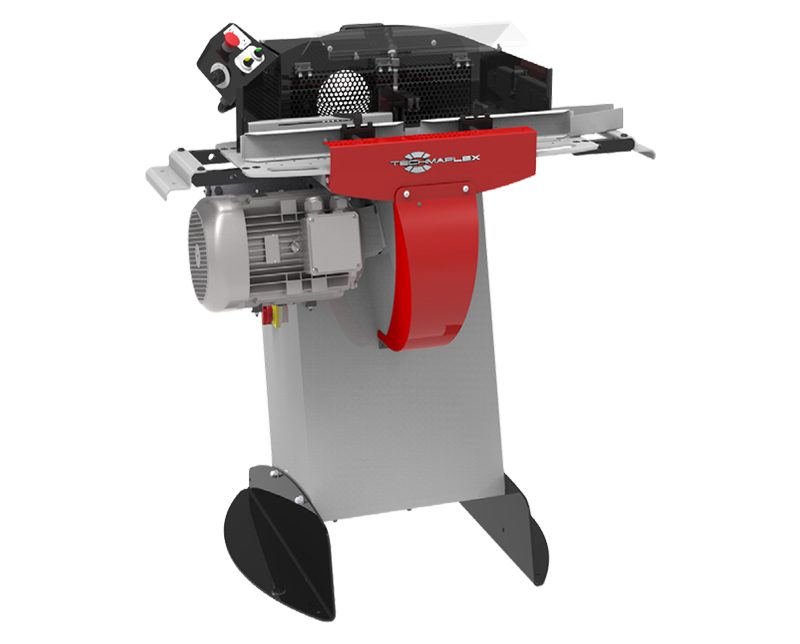

S-CUT 55 P
Expert Service Line
Stand Type Cutting Machine
KEY FEATURES:
- Versatile, slotted blade for high performance with minimal smoke
- Ergonomic and functional design
- Double foot pedal system
- Safety cover and feeding guides for hose (easy and fast cutting operation)
- Digital counter for maintenance assistance
- Adjustable speed for cutting on pneumatic version
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY | 2 WB: 2″ max 4 WS: 2″ max 6 WS: 2″ max Industrial: 3″ max |
| ROTATION SPEED | 3000 rpm |
| SLOTTED BLADE DIAMETER | 400 MM (15.7″) |
| MAX HOSE OD. | 80 mm (3.15″) |
| MOTOR | 7.5 KW |
| VOLTAGES | 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz Other voltages available on request |
| DIMENSIONS | 1140 x 1000 x 1280 mm (45 x 39 x 50 “) |
| NET WEIGHT | 240 kg (529 lb) |
| GROSS WEIGHT | 280 kg (617lb) |
| TECHNICAL FEATURES | Diameter of suction connector: 150 mm (5″) |
Options: Pneumatic Bending System, Scalloped Blade
Standard
 |
 |
 |
 |
|
| Control Panel | Slotted Blade | Feeding Guide | Dust Collector |
Add-Ons
 |
 |
 |
 |
 |
| Cutting Rail | Decoiler | DV 32 | Smoke Extractor | Smooth Blade |
Video
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. For more information, please visit our dedicated ‘Contact’ page on the Techmaflex website.
