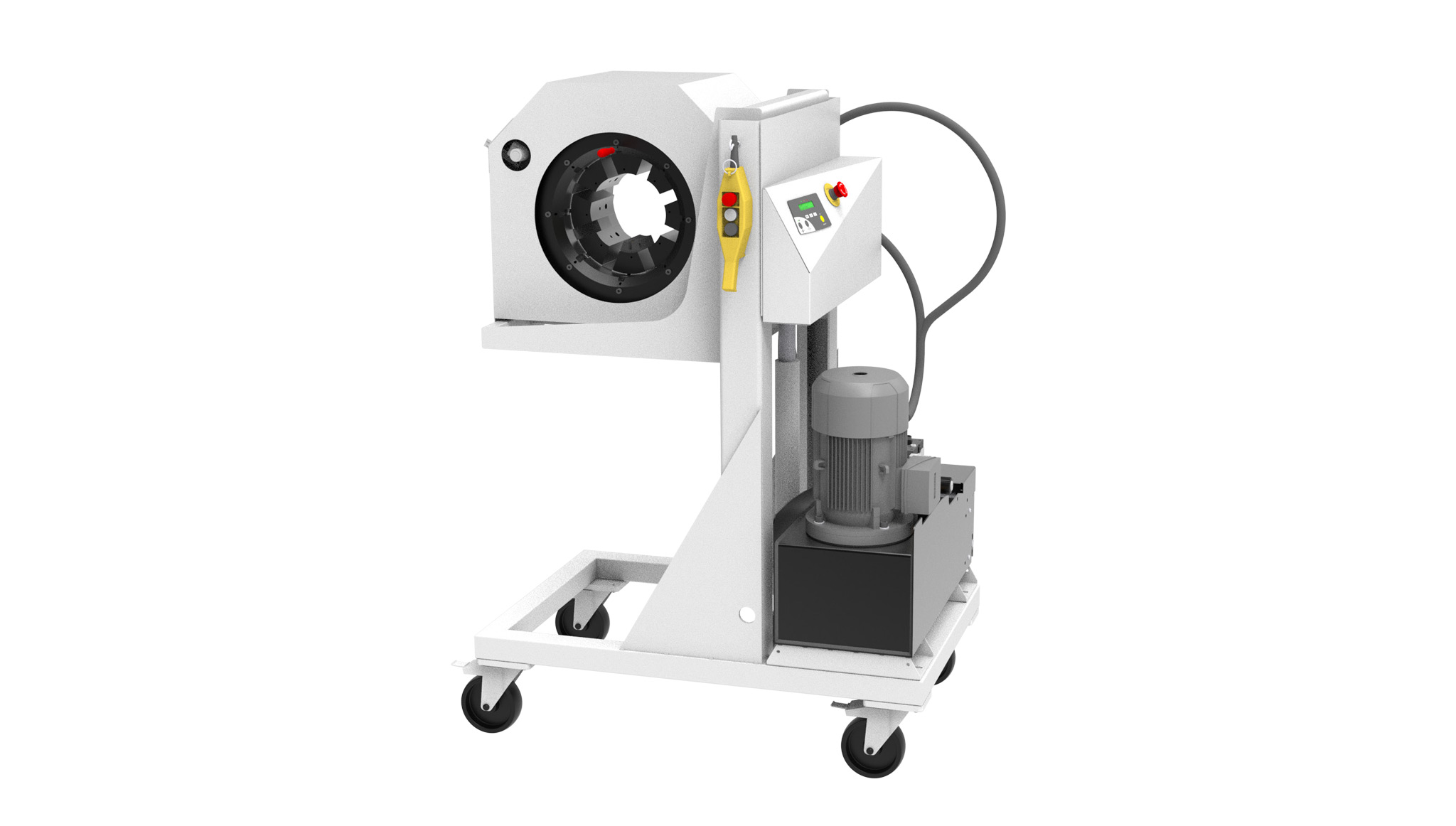

XL-CRIMP 400
XXL Workshop
KEY FEATURES:
- High crimping force
- Ergonomic operation
- Economic solution
- Large opening
- Robust
- Easy set up
- Versatile
- Adjustable crimping working position
INDUSTRIES:
 Hydraulic |
 Industrial |
Technical Specifications
| CAPACITY* | Industrial: 6” |
| CRIMP RANGE | 4 – 210 mm (0.157 – 8.268”) |
| CRIMP FORCE | 400 t |
| OPENING WITH DIES | +60 mm (+ 2.362”) |
| COMPLETE OPENING | 285 mm (11.221”) |
| MASTER DIE LENGTH | 150 mm (5.906”) |
| MOTOR | 5.5 kW |
| VOLTAGES | 230 V, 3 Ph 400 V, 3 Ph |
| DIMENSIONS | 1100 x 900 x 1550 mm (43 x 35 x 61”) |
| WEIGHT | 750 kg (165 lbs) |
| TECHNICAL FEATURES | Die sizes available upon request |
* Indicative capacities depending on hose and fitting type
Add-Ons
 |
||||
| Aluminium Quick Change Gun |
Optional
 |
 |
 |
||
| Remote Control | Ergonomic Micrometer | SC |
