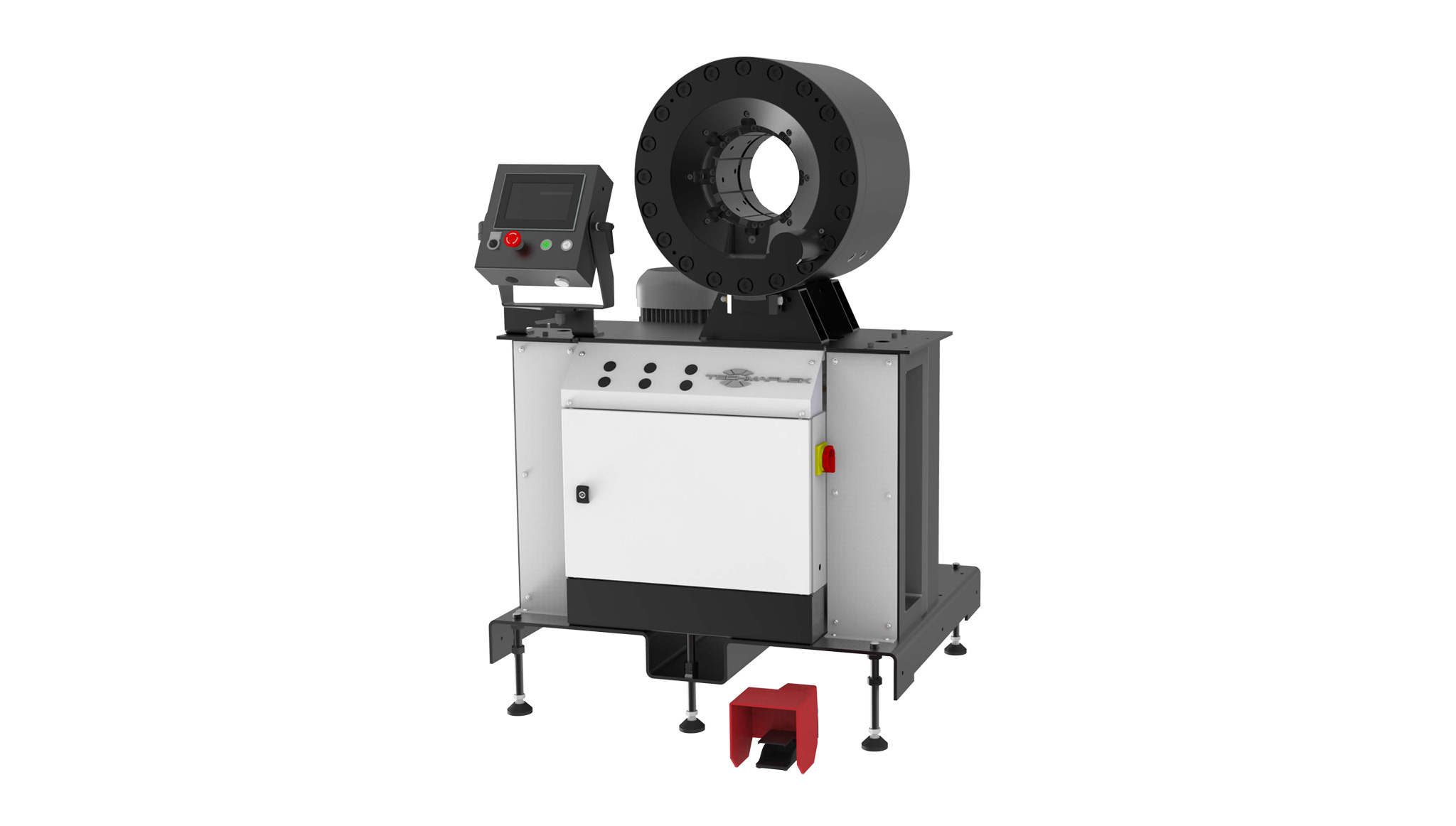

TUB-CRIMP 660 HP
KEY FEATURES:
- Computer with pressure control
- Foot pedal included
- Silent pump
- Radial movement
- Precise positioning of the tools
- Crimp strength
- Long master dies
- Automatic greasing system
INDUSTRIES:
 Tube |
Technical Specifications
| CRMIP RANG | 10 – 180 mm (0.394 – 7.087”) |
| CRIMP FORCE | 660 t |
| COMPLETE OPENING | 225 mm (8.858”) |
| OPENING WITH DIES | +25 mm (0.984”) |
| MASTER DIE LENGTH | 230 mm (9.055”) |
| DIAMIETER WITH CLOSED MASTER DIES | 200 mm (7.874”) |
| MOTOR | 5.5 kW |
| PUMP FLOW | 16 L/min |
| CYCLE TIME | 30 s |
| MAX WORKING PRESSURE | 320 bar (4641 psi) |
| VOLUME RATIO OF CHAMBERS | 2.95 |
| NOISE LEVEL | 66 dB A |
| DIMENSIONS | 1000 x 840 x 1370 mm (39 x 33 x 54”) |
| WEIGHT (WITH OIL) | 940 kg (2072 lb) |
Add-Ons
 |
 |
|||
| Speciial Die Sets (upon request) | ||||
Optional
 |
||||
| Electrical Footswitch |
