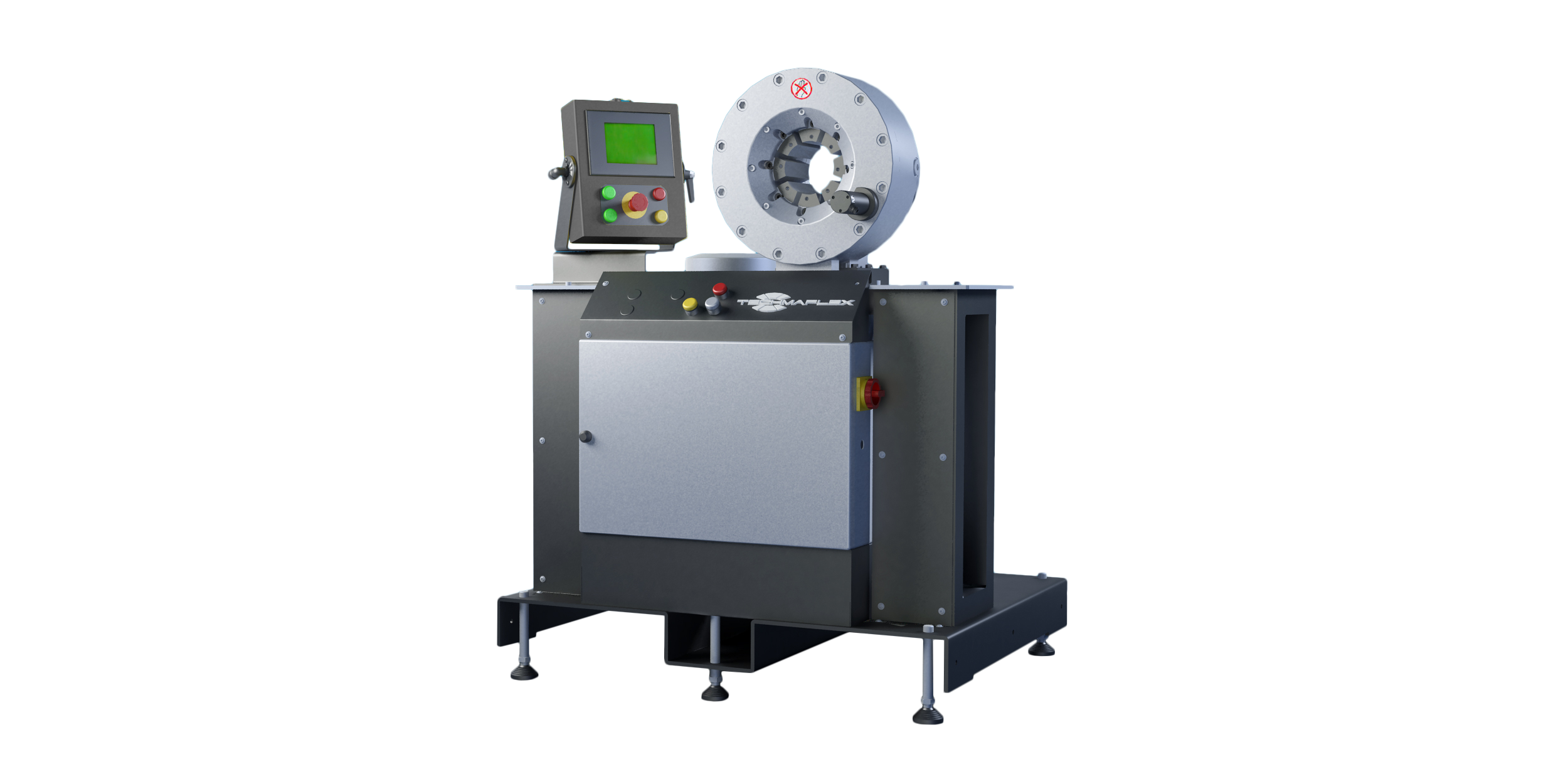

TUB-CRIMP 158 PRO
KEY FEATURES:
- Computer with pressure control
- Foot pedal included
- Silent pump
- Radial movement
- Precise positioning of the tools
- Rapid change of tools
INDUSTRIES:
 Tube |
Technical Specifications
| CRMIP RANG | 4 – 110 mm (0.157 – 4.331”) |
| CRIMP FORCE | 170 t |
| COMPLETE OPENING | 156 mm (6.141”) |
| OPENING WITH DIES | +28 mm (1.102”) |
| MASTER DIE LENGTH | 125 mm (4.921”) |
| DIAMIETER WITH CLOSED MASTER DIES | 130 mm (5.118”) |
| MOTOR | 5.5 kW |
| PUMP FLOW | 16 L/min |
| CYCLE TIME | 9 s |
| MAX WORKING PRESSURE | 250 bar (3626 psi) |
| VOLUME RATIO OF CHAMBERS | 9 |
| NOISE LEVEL | 65 dB A |
| DIMENSIONS | 1000 x 840 x 1200 mm (39 x 33 x 47”) |
| WEIGHT (WITH OIL) | 450 kg (992 lb) |
Standard
 |
||||
| Electrical Footswitch |
Add-Ons
 |
||||
| Speciial Die Sets (upon request) |
Documentation
Video
