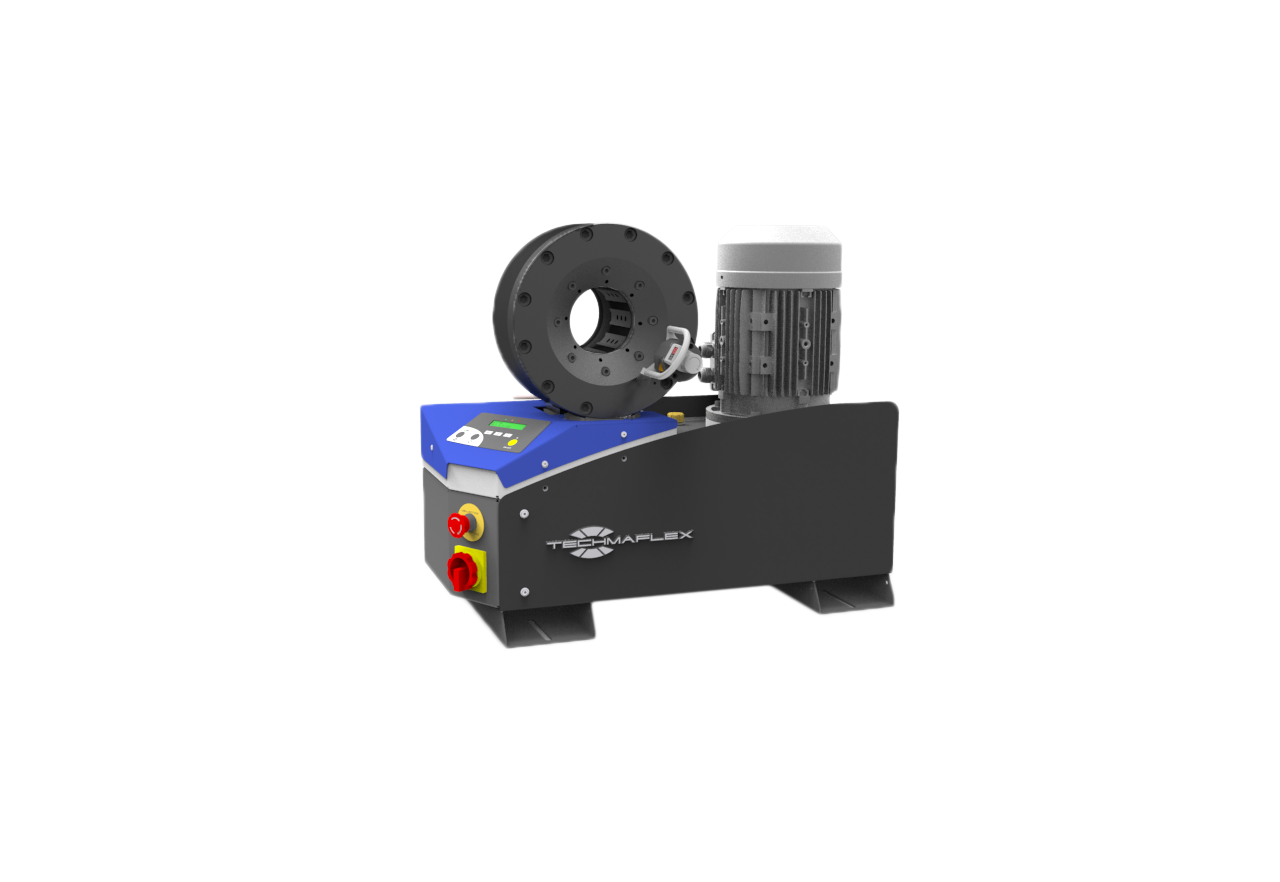

TUB-CRIMP 108 ECO
KEY FEATURES:
- Compact
- Low-noise technology
- Easy adjustment
- Visibility
- Ergonomics
- Rapid change of tools
- Smart control panel
- Radial movement
- Precisse positioning of the tools
INDUSTRIES:
 Tube |
Technical Specifications
| CRMIP RANG | 4 – 66 mm (0.157 – 2.598”) |
| CRIMP FORCE | 130 t |
| COMPLETE OPENING | 108 mm (4.252”) |
| OPENING WITH DIES | +28 mm (1.102”) |
| MASTER DIE LENGTH | 104 mm (4.094”) |
| DIAMIETER WITH CLOSED MASTER DIES | 80 mm (3.150”) |
| MOTOR | 4 kW |
| PUMP FLOW | 9 L/min |
| CYCLE TIME | 10 s |
| MAX WORKING PRESSURE | 280 bar (4061 psi) |
| VOLUME RATIO OF CHAMBERS | 8 |
| NOISE LEVEL | 68 dB A |
| DIMENSIONS | 764 x 360 x 367 mm |
| WEIGHT (WITH OIL) | 180 kg |
Add-Ons
 |
||||
| Special Die Sets (upon request) |
Documentation
