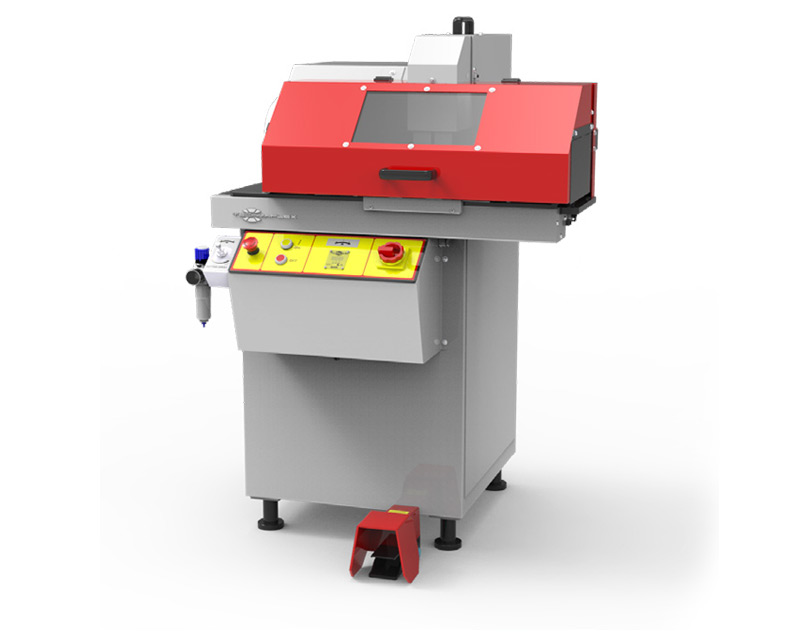

S-CUT 75 P
Expert Service Line
Stand Type Cutting Machine
KEY FEATURES:
- Very powerful
- Heavy duty for difficult cuts
- Resistant for extra cuts
- New design:
– Easy maintenance
– Efficiency for smoke extraction - Motor brake
- Pneumatic version (option)
- Option for industrial hose:
– Blade 540 mm for hoses with external - OD Max 150 mm
INDUSTRIES:
 Hydraulic |
 Industrial |
Technical Specifications
| CAPACITY | 2 WB: 2″ max 4 WS: 2″ max 6 WS: 2″ max* |
| ROTATION SPEED | 3000 rpm |
| SLOTTED BLADE DIAMETER | 520 MM (20.5″) included |
| MAX HOSE OD. | 125 mm (5″)** |
| MOTOR | 7.5 KW |
| VOLTAGES | 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz |
| DIMENSIONS | 910 x 820 x 1280 mm (36 x 32 x 50“) |
| NET WEIGHT | 215 kg (474 lb) |
| TECHNICAL FEATURES | Diameter of suction connection: 130 mm Electronic Soft Start Optional Tool: Pneumatic Version Other Blade on Demand |
*Minimum Air Pressure: 9,5 bar **150 mm with blade option 540 mm
Optional
 |
||||
| Slotted Blade |
Add-Ons
 |
 |
 |
 |
 |
| Cutting Rail | Decoiler | DV 32 | Smoke Extractor | Smooth Blade |
