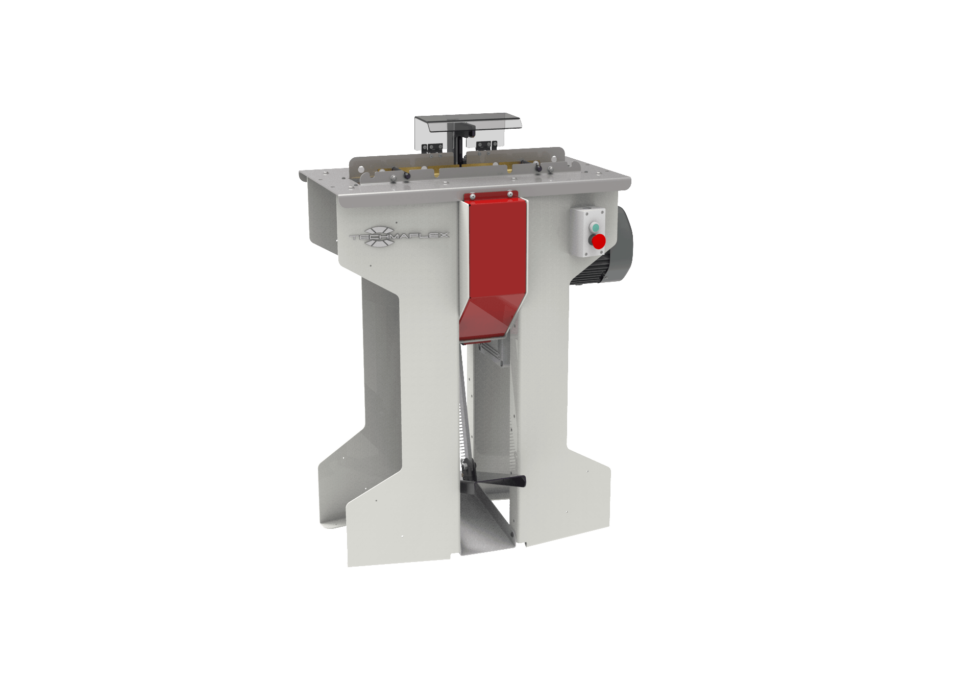

S-CUT 55 L
Basic & Professional
Workshop Cutting Machine
KEY FEATURES:
- Compact design
- Easy and safe to use
- Slotted blade for clean cut
- High performance and efficient cutting with minimal stroke
- Ergonomic, easy to clean
- Integrated dust collector
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY* | 2 WB: 2″ max 4 WS: 2-1/2″ max 6 WS: 2″ max Industrial: 3″ max |
| ROTATION SPEED | 3000 rpm |
| SCALLOPED BLADE DIAMETER | 400 MM (15.7″) |
| MAX HOSE OD. | 95 mm (3.74″) |
| MOTOR | 5.5 KW |
| VOLTAGES | 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz Other voltages available on request |
| DIMENSIONS | 830 x 520 x 1160 mm (33 x 20 x 46 “) |
| NET WEIGHT | 135 kg (298 lb) |
| TECHNICAL FEATURE | Diameter of suction connector: 125mm (5″) |
*Indicative capacities depending on hose type
Optional
 |
 |
 |
||
| Smoke Suction Connecto | Dust Collector | Slotted Blade |
Add-Ons
 |
 |
 |
 |
 |
| Cutting Rail | Decoiler | DV 32 | Smoke Extractor | Scalloped Blade |
 |
||||
| Smooth Blade |
