S-CRIMP 350 EVO – L
Full Service Workshop
Benchtop; Very High Crimp Force
KEY FEATURES:
- Crimp force up to 350 tonnes for hoses up to 3”
- Easy to use and robust
- Automatic maintenance alerts
- Groove for 90° long drop fittings
- Also available as S CRIMP 350 L with 4.0 kW motor

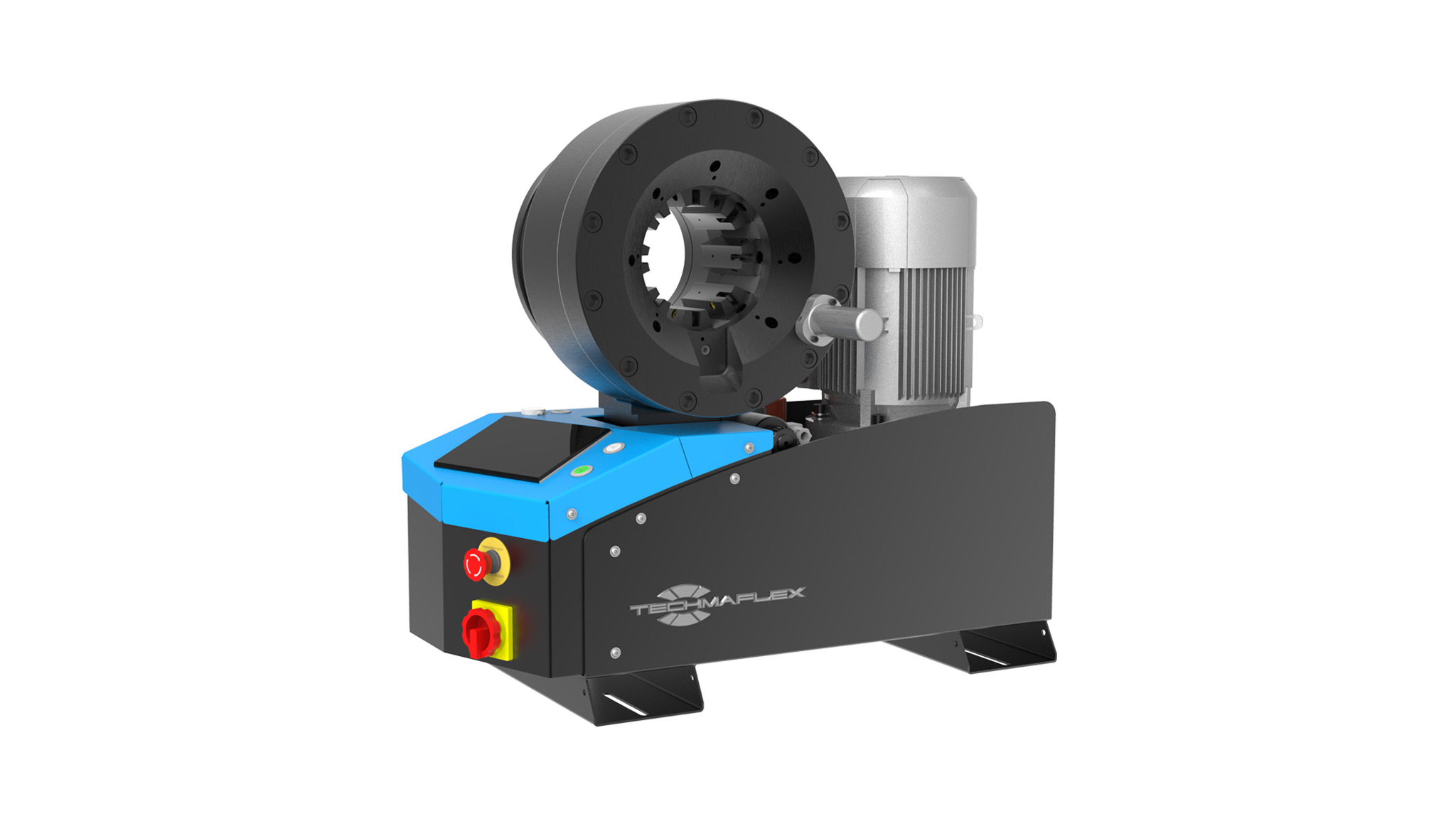

- Model shown equipped with SCS control panel
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY* | 2wb: 3” max. Industrial: 4” max. 4ws: 2” max. 6ws: 2” max. |
| CRIMP RANGE | 4 – 130 mm (0.157 – 5.118”) |
| CRIMP FORCE | 350 t |
| OPENING WITH DIES | +54 mm (+2.125”) |
| COMPLETE OPENING | 180 mm (7.086”) |
| MASTER DIE LENGTH | 115 mm (4.523”) |
| STANDARD DIES | 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70, 73, 76 |
| NOISE LEVEL | <70 dB A |
| MOTOR | 5.5 kW / 4 kW |
| VOLTAGES | 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz 380/415 V, 3Ph, 60 Hz |
| DIMENSIONS | 765 x 400 x 750 mm (30 x 16 x 30”) |
| NET WEIGHT | 262 kg (578 lb) |
| TECHNICAL FEATURES | Automatic maintenance alerts Cylinder protection against dust – durable desing Also available as S CRIMP 350 EVO L with 4.0 kW Motor |
* Indicative capacities depending on hose and fitting type
Add-Ons
 |
 |
 |
 |
 |
| Maintenance Kits | Die Storage Panel | Die Storage Table | Die Storage Table EVO | Electrical Footswitch |
 |
 |
 |
 |
 |
| Aluminium Quick Change Gun | Digital Caliper | Die SEts for Brake & Air Conditioning Hoses | Marking Dies | Die Storage Panel EVO |
 |
||||
| Mechanical Backstop |
Control Options
Available on request.
 |
 |
 |
||
| SC | SCE | SCS |
Video
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. For more information, please visit our dedicated ‘Contact’ page on the Techmaflex website.
