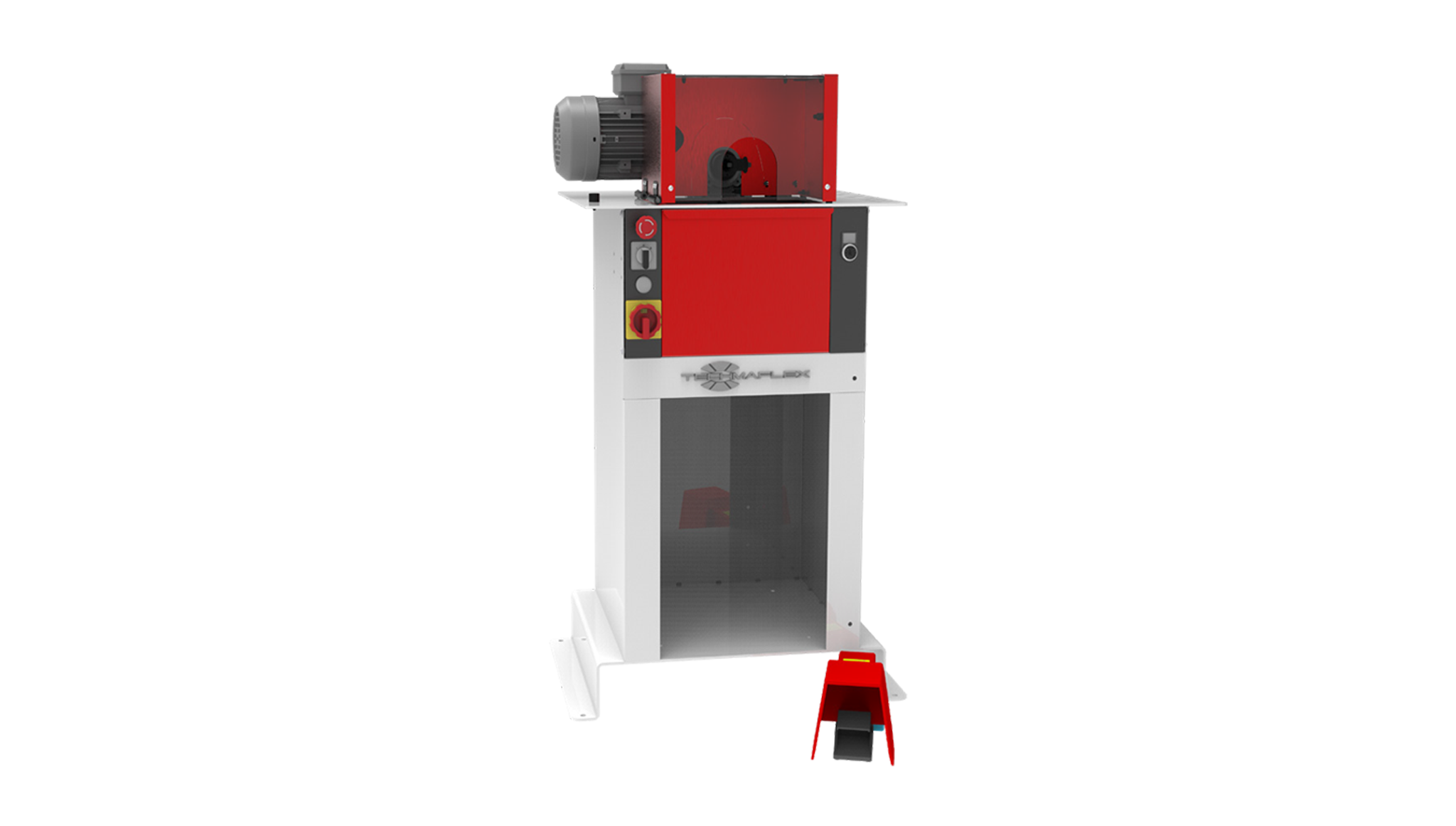

P SKIVE 300
Starter & Professional Workshop
Stand Type Skiving Machine
KEY FEATURES:
- Plug’n skive system
- Large dust collector
- Robust & easily adjustable knife for quick and easy changeover
- Suitable for high volume production
- 2-way rotation
- Speed regulator for single-phase version
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY | 2 WB: 2″ max 4 WS: 2″ max 6 WS: 3″ max* |
| ROTATION SPEED | 300 rpm |
| MOTOR | 0.9 KW |
| VOLTAGES | 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz 380/415 V, 3Ph, 60 Hz |
| DIMENSIONS | 675 x 550 x 1130 mm (27 x 22 x 44“) |
| PACKAGING | 800 x 600 x 1200 mm (32 x 24 x 47″) |
| NET WEIGHT | 100 kg (220 lb) |
| GROSS WEIGHT | 160 kg (353 lb) |
| TECHNICAL FEATURES | Options available: Hose clamping system (recommended for hoses from 2″) Tools available (to be ordered separately): ESA, IS, ESP1, ESP2 |
* With clamping system
Add-Ons
 |
 |
 |
 |
 |
| Tool Kit IS | Tool Kit ESE | Tool Kit ESP 1 | Tool Kit ESP 2 | Manual Hose Clamping System |
 |
 |
|||
| Pneumatic Hose Clamping System | Speed Regulator |
