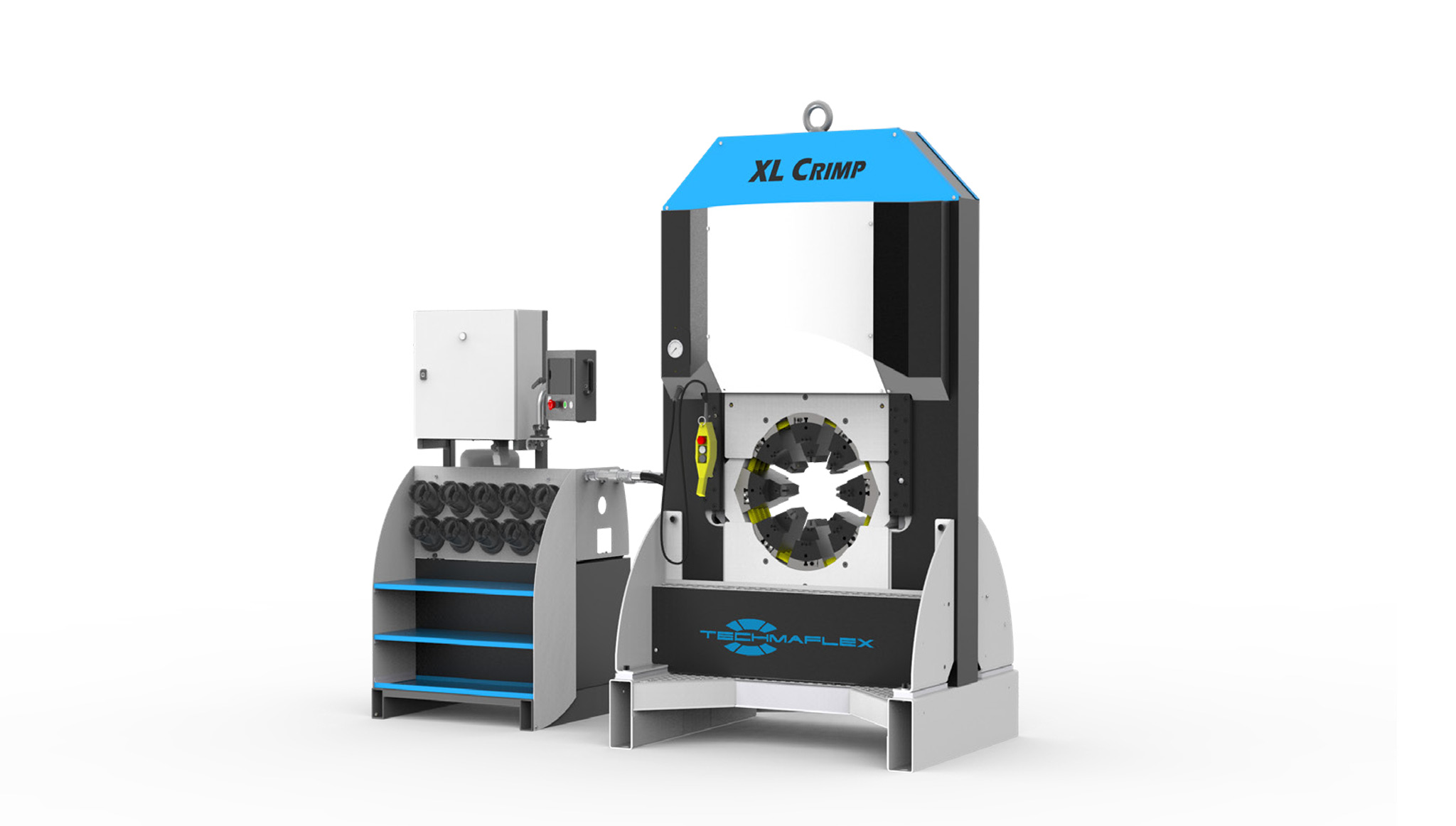

XL-CRIMP 550/XL CRIMP 550-16
XXL Workshop
KEY FEATURES:
- Very Large opening
- Fixed bottom die
- Long dies available
- High crimping force
- Symmetric machine
- Low working height
- Ergonomic
- Safe Crimp System (SCS)
- Step crimping capability with SCS
INDUSTRIES:
 Industrial |
Technical Specifications
| XL CRIMP 550 | XL CRIMP 550-16 | |
| CAPACITY* | Industrial: 12” | Industrial: 16” |
| CRIMP FORCE | 550 t | |
| COMPLETE OPENING | 495 mm (19.2488”) | 650 mm (25.591”) |
| OPENING WITH DIES | +130 mm (+5.118 ”) | +160 mm (6.299”) |
| MASTER DIE LENGTH | 200 mm (7.874”) | |
| MOTOR | 5.5 kW | |
| VOLTAGES | 230 V, 3 Ph 400 V, 3 Ph |
|
| MACHINE DIMENSIONS | 1300 x 1050 x 2230 mm (51 x 41 x 88”) |
1650 x 1830 x 2660 mm (65 x 72 x 105”) |
| POWER PACK DIMENSIONS | 800 x 800 x 1650 mm (31 x 31 x 65”) |
|
| MACHINE WEIGHT | 4000 kg (8818 lb) | 5300 kg (11684 lb) |
| POWER PACK WEIGHT | 400 kg (882 lb) | |
| TECHNICAL FEATURES | Die sizes available upon request | |
* Indicative capacities depending on hose and fitting type
Add-Ons
 |
||||
| Back View Camera |
Optional
 |
 |
|||
| SCS Safe Crimp System | Die Storage |
