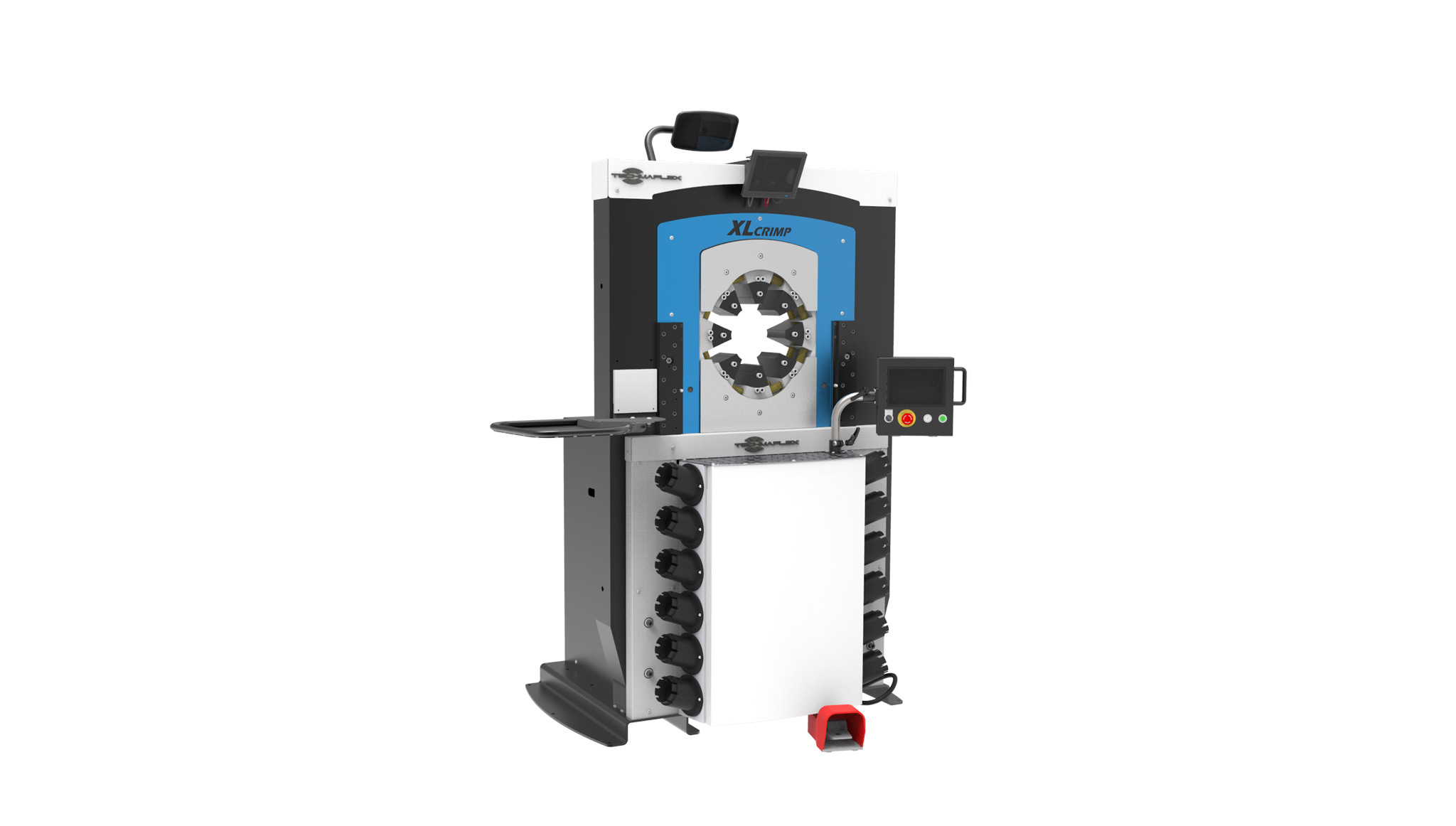

XL-CRIMP 450
8″ Hose Crimper
KEY FEATURES:
- High Crimp force (450 tonnes)
- Large opening for hoses up to 8” and flanges up to ANSI 150 PSI
- Diameter adjustment is controlled by SCS
- Possibility to install eccentric and/or deported dies
INDUSTRIES:
 Hydraulic |
 Industrial |
Technical Specifications
| CAPACITY* | Industrial: 8” |
| MAX CRIMPING DIAMETER | 300 mm (11.811”) (with special dies) |
| CRIMP FORCE | 450 t |
| OPENING WITH DIES | + 130 mm (5.118”) |
| COMPLETE OPENING | 360 mm (14.173”) |
| MAXIMUM DIE LENGTH | 130 mm (5.118”) |
| GROSS WEIGHT | 2900 kg (6393 lb) |
| TECHNICAL FEATURES | Die sizes available upon request |
* Indicative capacities depending on hose and fitting type
Add-Ons
 |
 |
 |
 |
 |
| Die Storage Panel | Marking Dies | Back View Camera | Digital Caliper | Mechanical Backstop |
 |
 |
 |
||
| Side Table | Die Sets for Brake & Air Conditioning Hoses | Simple or double foot pedal |
Optional
 |
 |
 |
 |
 |
| Aluminium Quick Change Gun | SCS Safe Crimp System | Mirror | Electrical Footswitch | Die Storage |
 |
||||
| Pushing Panel |
