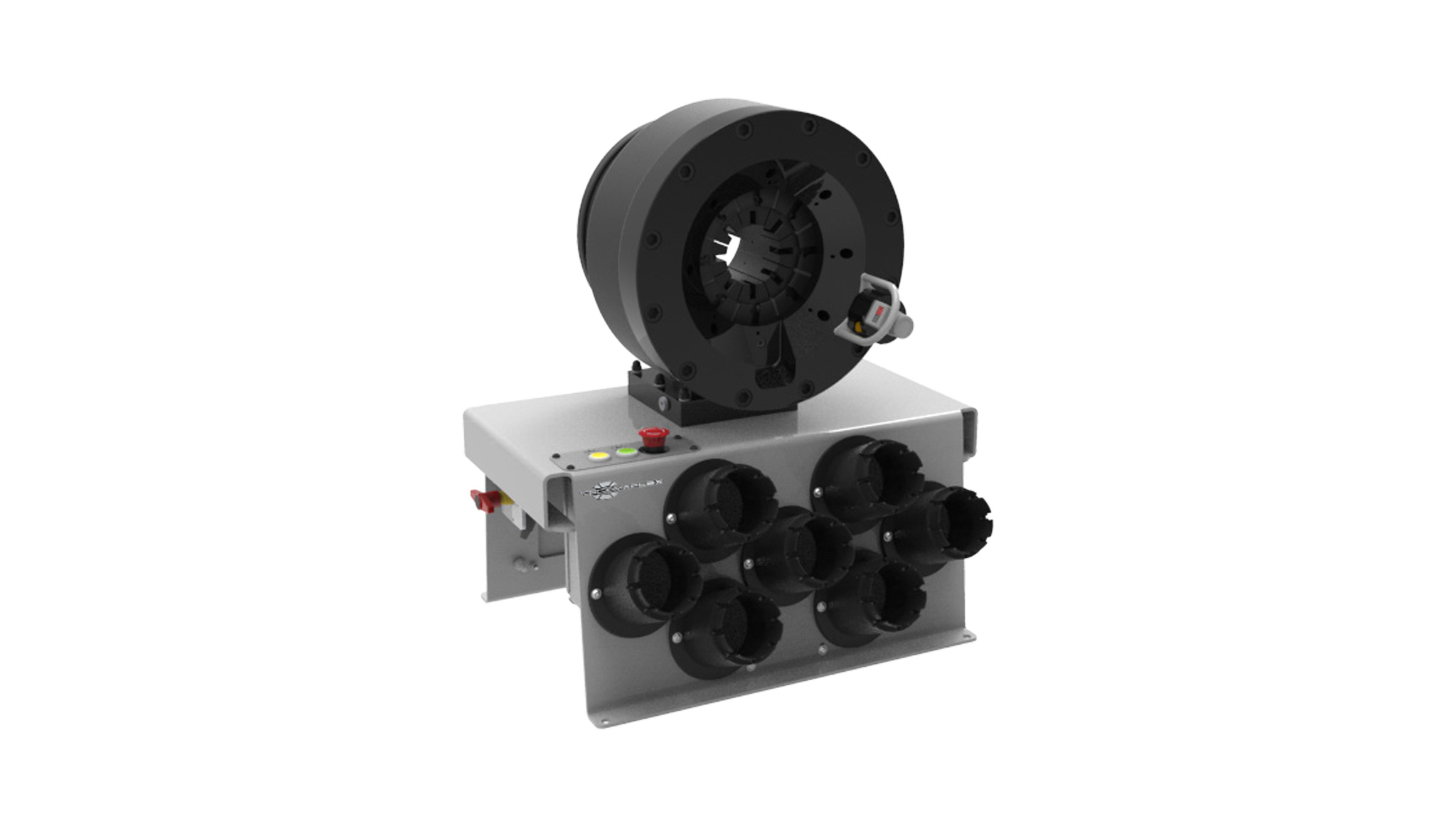

V-CRIMP 350 / 350 L
Field Service & Mobile / Container Workshop
Mobile Van
KEY FEATURES:
- Robust design
- Large opening
- High crimping force
- Ergonomic micrometer
- High crimping speed
- Radial movement of the dies
- Cylinder protection
- Remote head mounting option possible
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY* | 2wb: 3” max. 4ws: 2” max. 6ws: 2” max. Industrial: 4” |
| CRIMP RANGE | 4 – 130 mm (0.157 – 5.118”) |
| CRIMP FORCE | 350 t |
| OPENING WITH DIES | +54 mm (+2.125”) |
| COMPLETE OPENING | 180 mm (7.086”) |
| MASTER DIE LENGTH | 115 mm (4.528”) |
| STANDARD DIES | 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70, 73, 76 |
| NOISE LEVEL | <65 dB A |
| MOTOR | 2.0 kW |
| VOLTAGES | 12 V 24 V 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz 380/415 V, 3Ph, 60 Hz |
| DIMENSIONS | 650 x 550 x 750 mm 485 x 435 x 390 mm** |
| PACKAGING | 800 x 600 x 830 mm |
| NET WEIGHT | 210 kg / 215 kg** |
| GROSS WEIGHT | 260kg / 230 kg** |
| DIMENSION OF POWER PACK | 605 x 318 x 325 mm |
* Indicative capacities depending on hose and fitting type
** L Version
Add-Ons
 |
 |
 |
 |
 |
| Maintenance Kits | Battery | Aluminium Quick Change Gun | Die Storage Panel | Marking Dies |
 |
 |
|||
| Die Sets for Brake & Air Conditioning Hoses | Front Die Storage |
Optional
 |
||||
| Remote Head Mounting |
