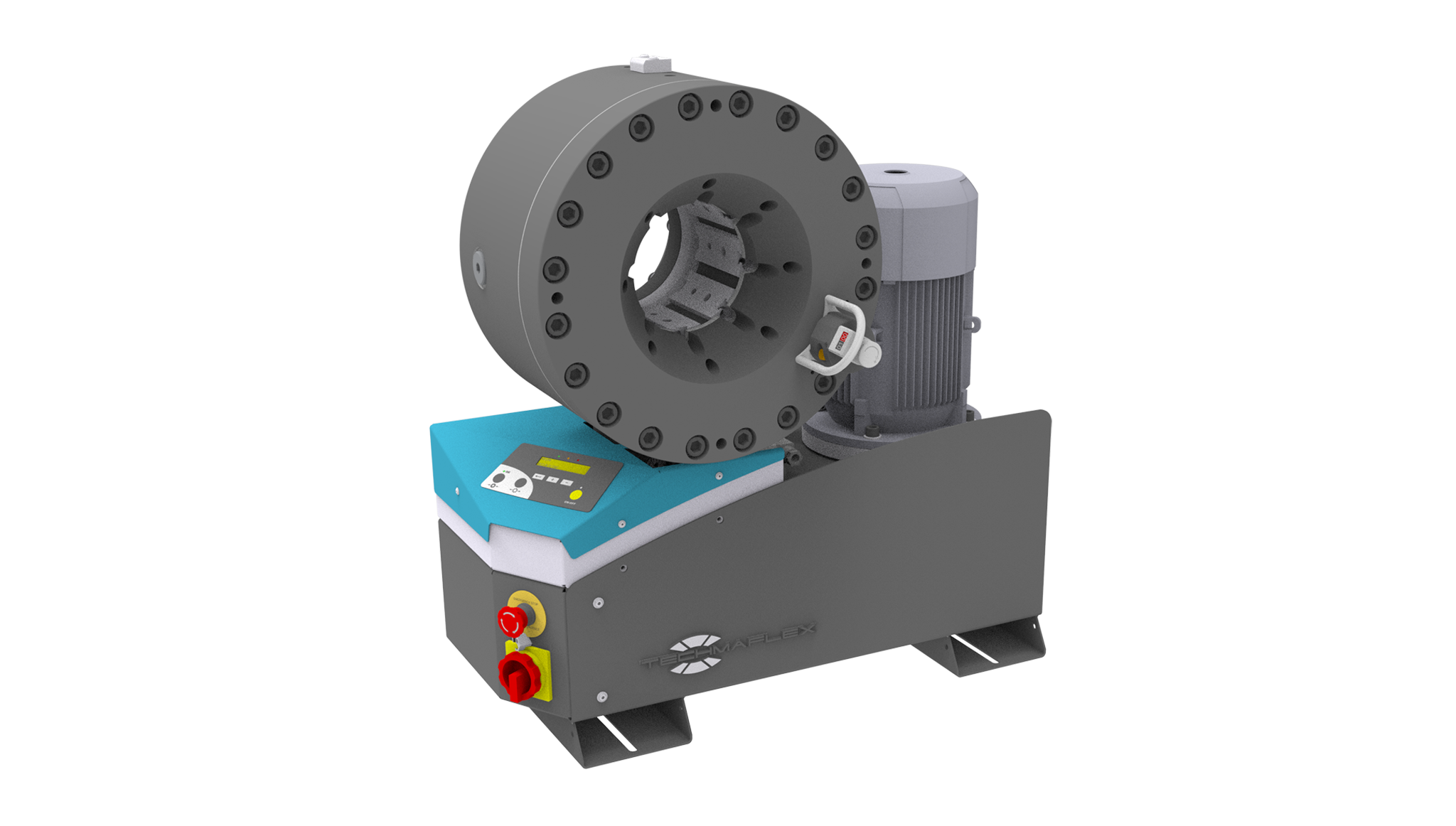

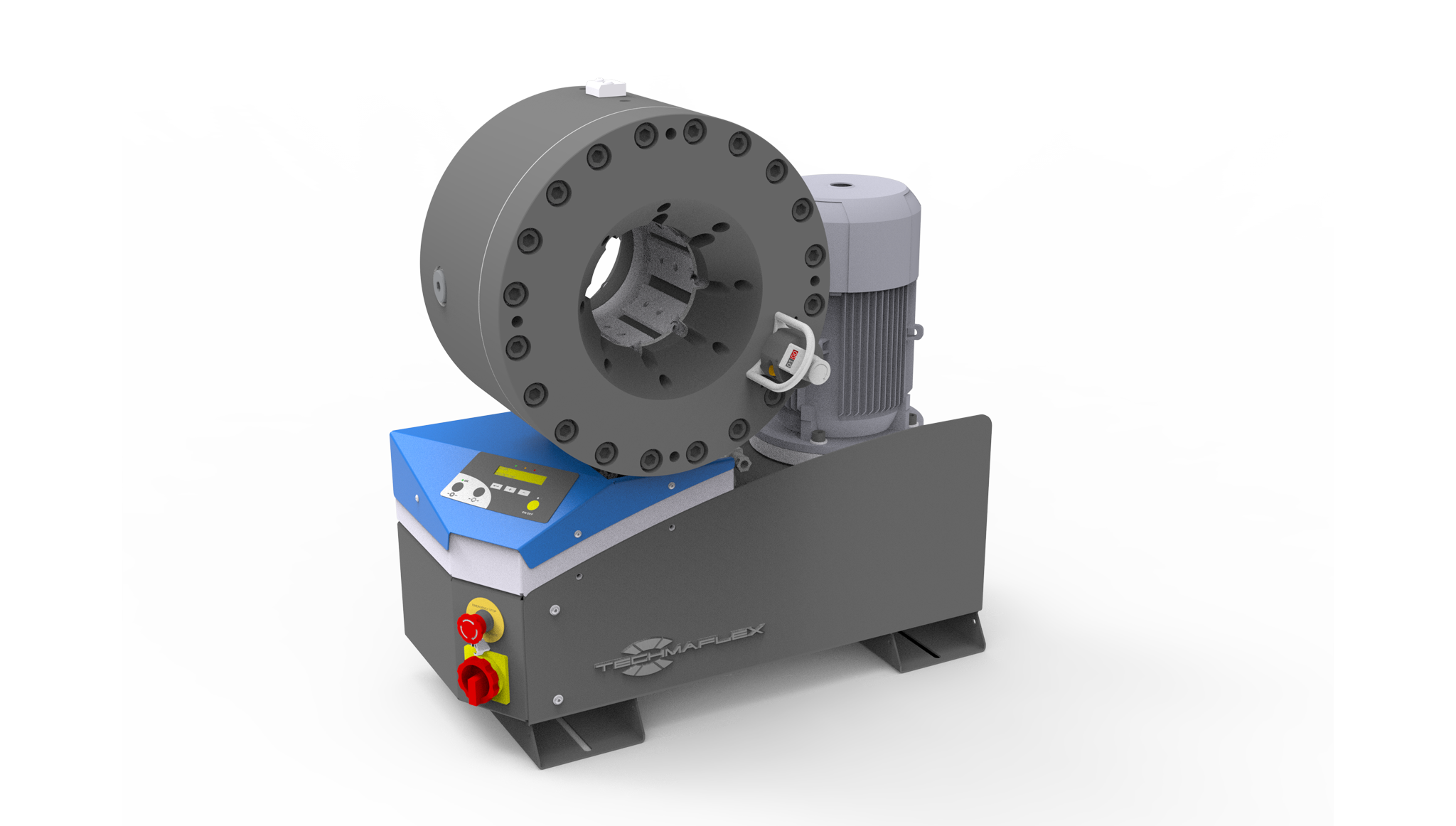

TUB-CRIMP 260 ECO
KEY FEATURES:
- Compact
- Low-noise technology
- Easy adjustment
- Visibility
- Ergonomics
- Rapid change of tools
- Smart control panel
- Radial movement
- Precise positioning of the tools
INDUSTRIES:
 Tube |
Technical Specifications
| CRMIP RANG | 4 – 110 mm (0.157 – 4.331”) |
| CRIMP FORCE | 260 t |
| COMPLETE OPENING | 156 mm (6.142”) |
| OPENING WITH DIES | +26 mm (1.024”) |
| MASTER DIE LENGTH | 125 mm (4.921”) |
| DIAMIETER WITH CLOSED MASTER DIES | 130 mm (5.118”) |
| MOTOR | 5.5 kW |
| PUMP FLOW | 16 L/min |
| CYCLE TIME | 14 s |
| MAX WORKING PRESSURE | 250 bar (3626 psi) |
| VOLUME RATIO OF CHAMBERS | 6.8 |
| NOISE LEVEL | 65 dB A |
| DIMENSIONS | 775 x 360 x 875 mm (30 x 14 x 34”) |
| WEIGHT (WITH OIL) | 290 kg (639 lb) |
Add-Ons
 |
 |
|||
| Speciial Die Sets (upon request) | ||||
Optional
 |
||||
| Electrical Footswitch |
