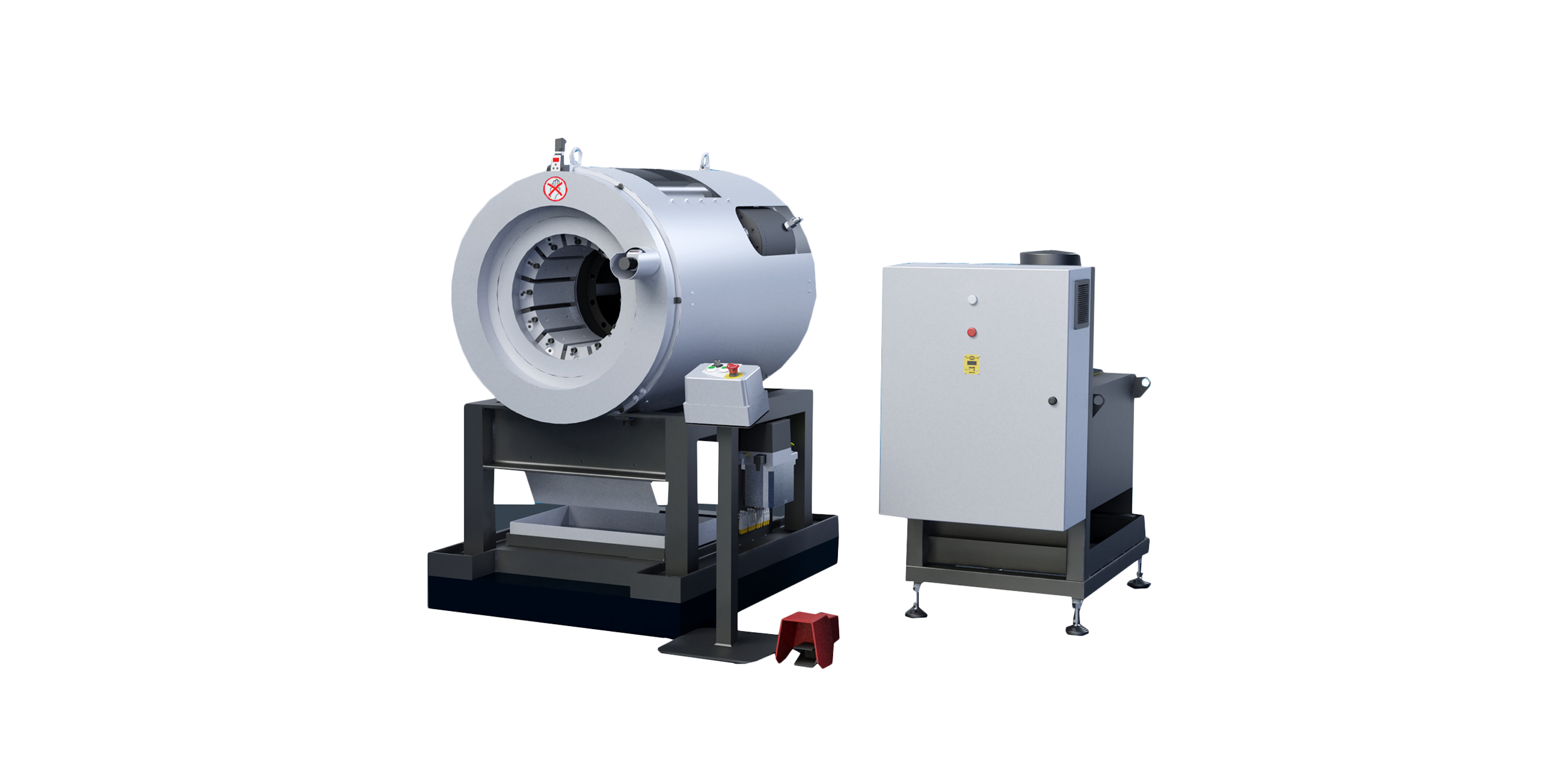

TUB-CRIMP 1700 HP
KEY FEATURES:
- Foot pedal included
- Silent pump
- Crimp strength
- Long master dies
- Through passing head
INDUSTRIES:
 Tube |
Technical Specifications
| CRMIP RANG | 40 – 315 mm (1.575- 12.402”) |
| CRIMP FORCE | 1700 t |
| COMPLETE OPENING | 360 mm (14.173”) |
| OPENING WITH DIES | +30 mm (1.181”) |
| MASTER DIE LENGTH | 275 mm (10.827”) |
| DIAMIETER WITH CLOSED MASTER DIES | 310 mm (12.205”) |
| MOTOR | 5.5 kW |
| PUMP FLOW | 16 L/min |
| CYCLE TIME | 33 s |
| MAX WORKING PRESSURE | 320 bar (4641 psi) |
| VOLUME RATIO OF CHAMBERS | 1.26 |
| NOISE LEVEL | 66 dB A |
| DIMENSIONS | 960 x 1400 x 1400 mm (38 x 55 x 55”) |
| WEIGHT (WITH OIL) | 200 kg (441 lb) |
Add-Ons
 |
 |
|||
| Speciial Die Sets (upon request) | ||||
