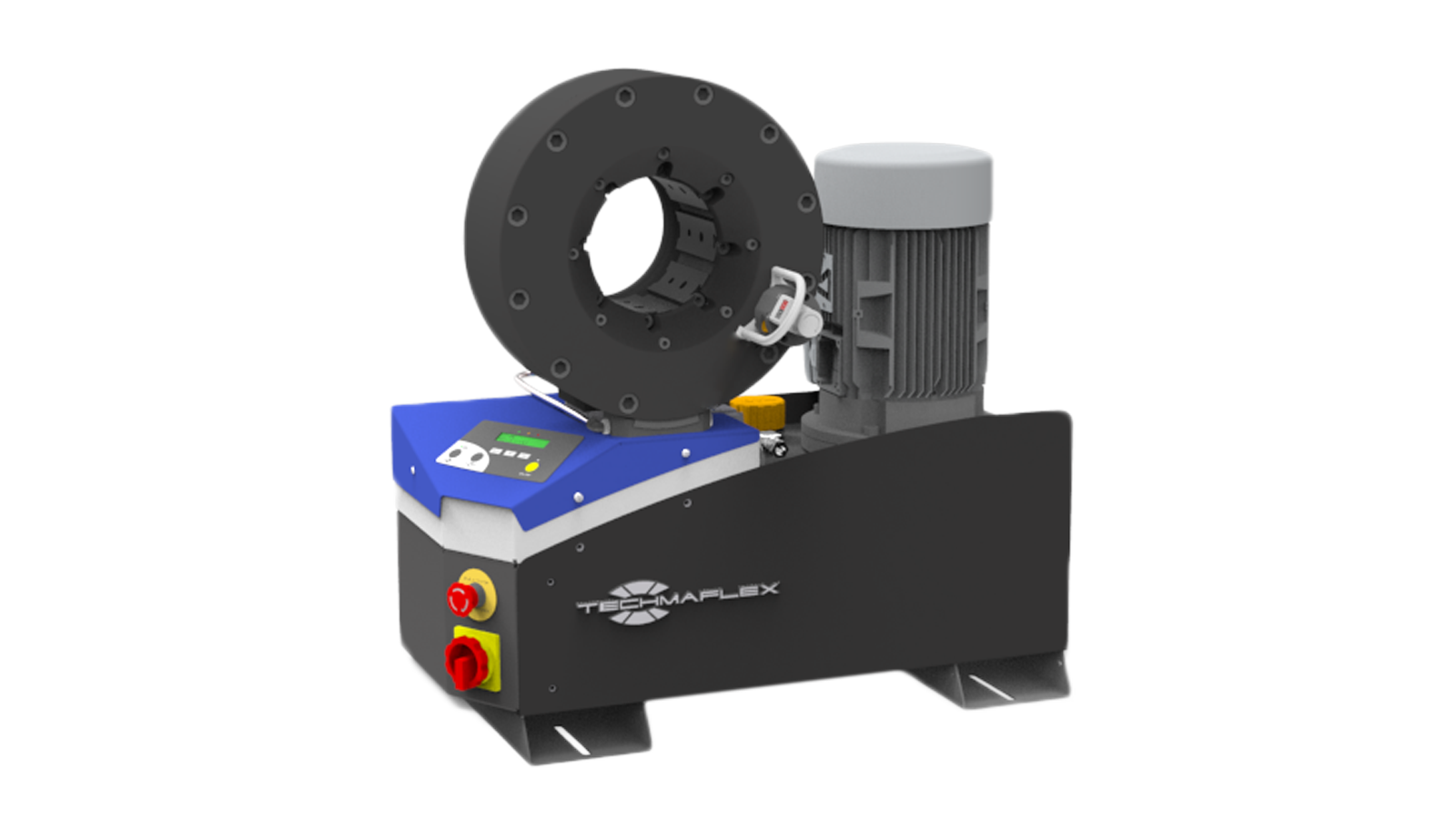

TUB-CRIMP 158 ECO
KEY FEATURES:
- Compact
- Low-noise technology
- Easy adjustment
- Visibility
- Ergonomics
- Rapid change of tools
- Smart control panel
- Radial movement
- Precise positioning of the tools
INDUSTRIES:
 Tube |
Technical Specifications
| CRMIP RANG | 4 – 110 mm (0.157 – 4.331”) |
| CRIMP FORCE | 190 t |
| COMPLETE OPENING | 158 mm (6.220”) |
| OPENING WITH DIES | +28 mm (1.102”) |
| MASTER DIE LENGTH | 125 mm (4.921”) |
| DIAMIETER WITH CLOSED MASTER DIES | 130 mm (5.118”) |
| MOTOR | 4 kW |
| PUMP FLOW | 15 L/min |
| CYCLE TIME | 8 s |
| MAX WORKING PRESSURE | 280 bar (4061 psi) |
| VOLUME RATIO OF CHAMBERS | 9 |
| NOISE LEVEL | 68 dB A |
| DIMENSIONS | 764 x 360 x 755 mm |
| WEIGHT (WITH OIL) | 240 kg |
Add-Ons
 |
||||
| Speciial Die Sets (upon request) |
Documentation
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. For more information, please visit our dedicated ‘Contact’ page on the Techmaflex website.
