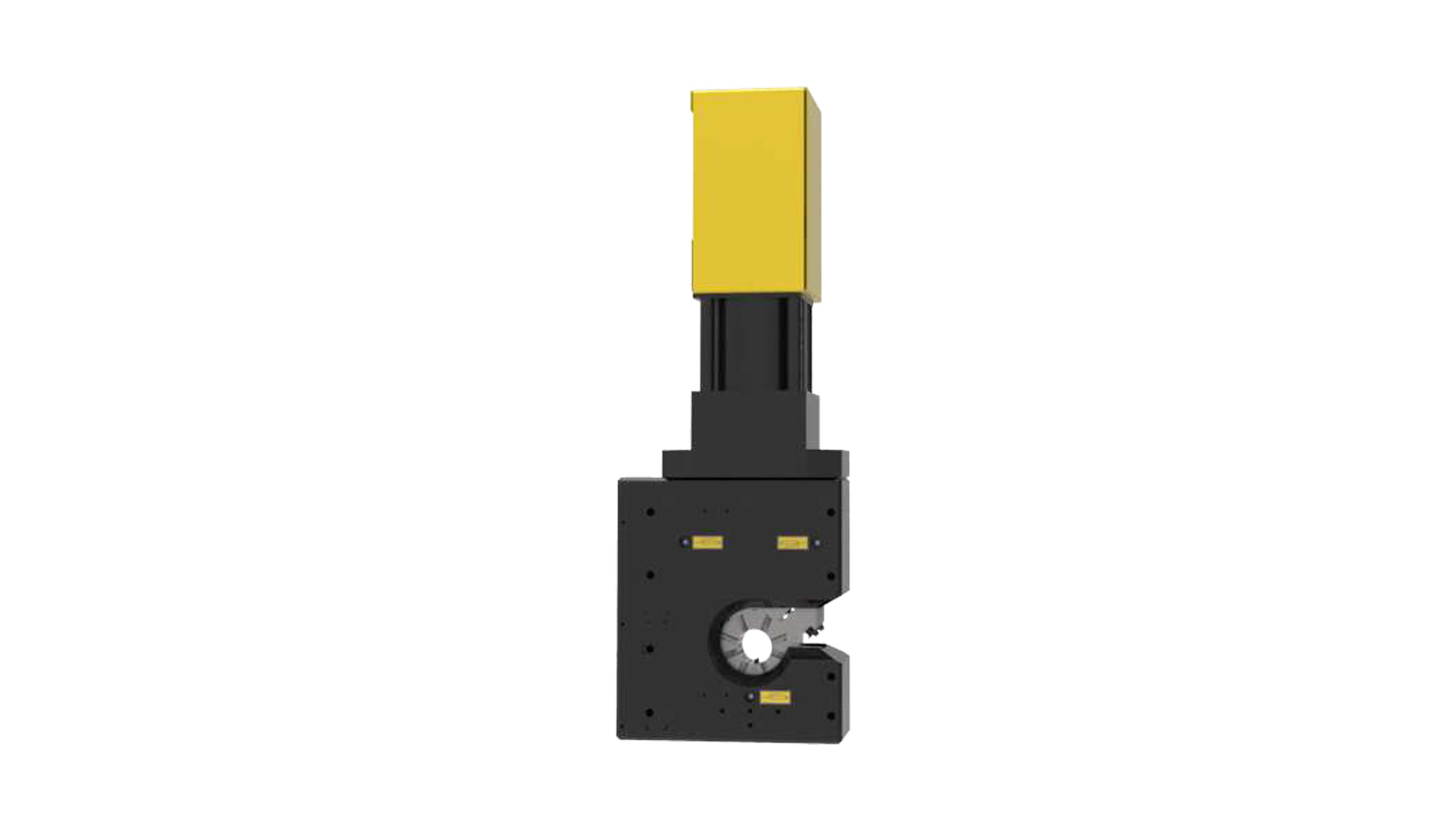

TO8 25 HEAD
Assembly Headbr /> A/C, Composite Hoses
KEY FEATURES:
- Ideal for composite (rubber hose and tube) assemblies
- High Cpk / Cmk performances
- Slim design (120 mm)
- Designed for intensive OEM production
- Possibility to order head only for integration into fully automated production line
INDUSTRIES:
 Automotive |
Technical Specifications
| CRIMP RANGE | 4 – 40 mm (0.157 – 1.575”) |
| CRIMP FORCE | 20t |
| COMPLETE OPENING | 55 mm (2.165”) |
| MAX CRIMPING STROKE | 10 mm (0.394”) |
| MASTER DIE LENGTH | 50 mm (1.969”) |
| DIAMETER WITH CLOSED MASTER DIES | 50 mm (1.969”) |
| PUMP FLOW | 30 L Max |
| CYCLE TIME | 3.6 s / 30L min |
| MAX WORKING PRESSURE | 160 bar (2321 psi) |
| VOLUME RATION OF CHAMBERS | 2 |
Add-Ons
 |
 |
|||
| Speciial Die Sets (upon request) | Special Hydraulic Power Pack |
