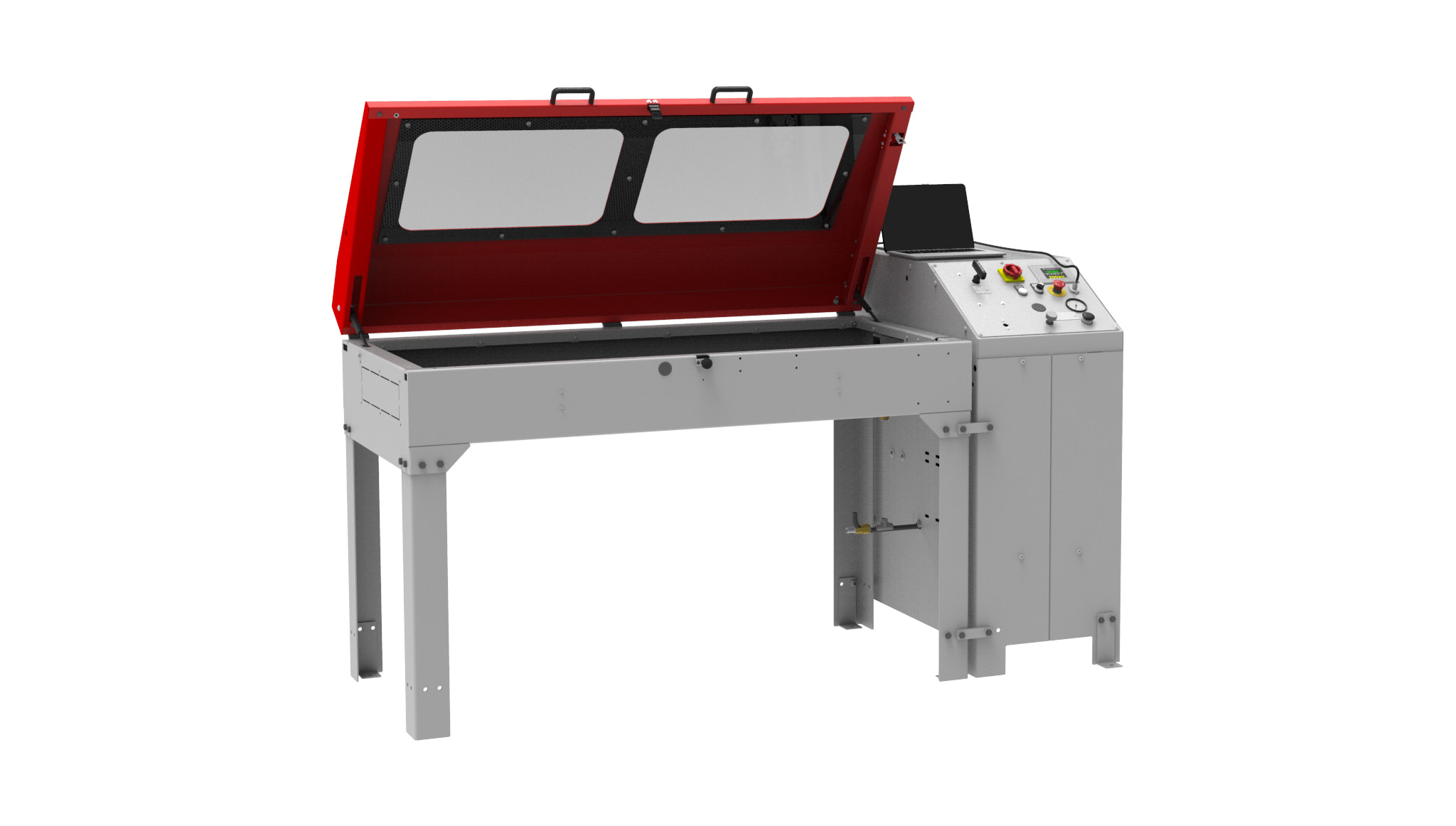

S TEST 2000 L
Test Bench, Proof Pressure & Certify
Stand Type Machine
KEY FEATURES:
- Easy to use and robust
- Safe: Steel Compartment, polycarbonate transparent window and metal mesh
- Large testing area for up to 6 hoses
- Variable pressure up to 2000 bar
INDUSTRIES:
 Hydraulic |
Technical Specifications
| INDICATIVE CAPACITY | 3/16’’ – 2’’ |
| HOSE CONNECTION | 6 maximum |
| AIR CONSUMPTION | 1000 L/min |
| OPENING / CLOSING TIME | 10-14 seconds |
| MAX PRESSURE | 2000 bar (29000 psi) |
| INNER TANK CAPACITY | 1700 x 790 x 200 mm (67 x 31 x 8”) |
| DIMENSIONS (PANEL) | 700 x 1200 x 1220 mm (28 x 47 x 48”) |
| PACKAGING (TANK) | 1600 x 1200 x 1280 mm (63 x 47 x 50”) |
| PACKAGING (PANEL) | 1000 x 1200 x 1280 mm (39 x 47 x 50”) |
| NET WEIGHT | 430 kg (948 lb) |
| GROSS WEIGHT | 500 kg (1102 lb) |
| TECHNICAL FEATURES | Minimum compressed air input 8.5 bar (123 psi) |
Features & Options
| DISPLAY FEATURES | M – Gauge measurement display E – Numerical measurement display with 4” touch screen and ethernet connection for computer |
| FURTHER OPTIONS | Autonomous filling pump Air blowing system for both models |
Available Versions
 |
 |
|||

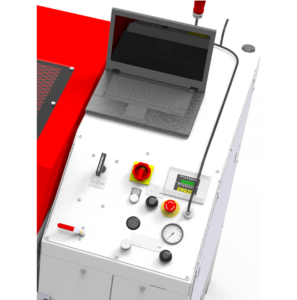

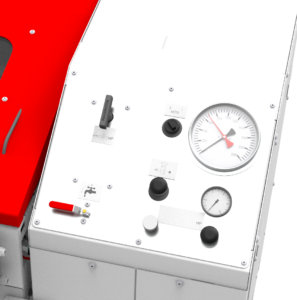

| Power Unit M | Power Unit E |
