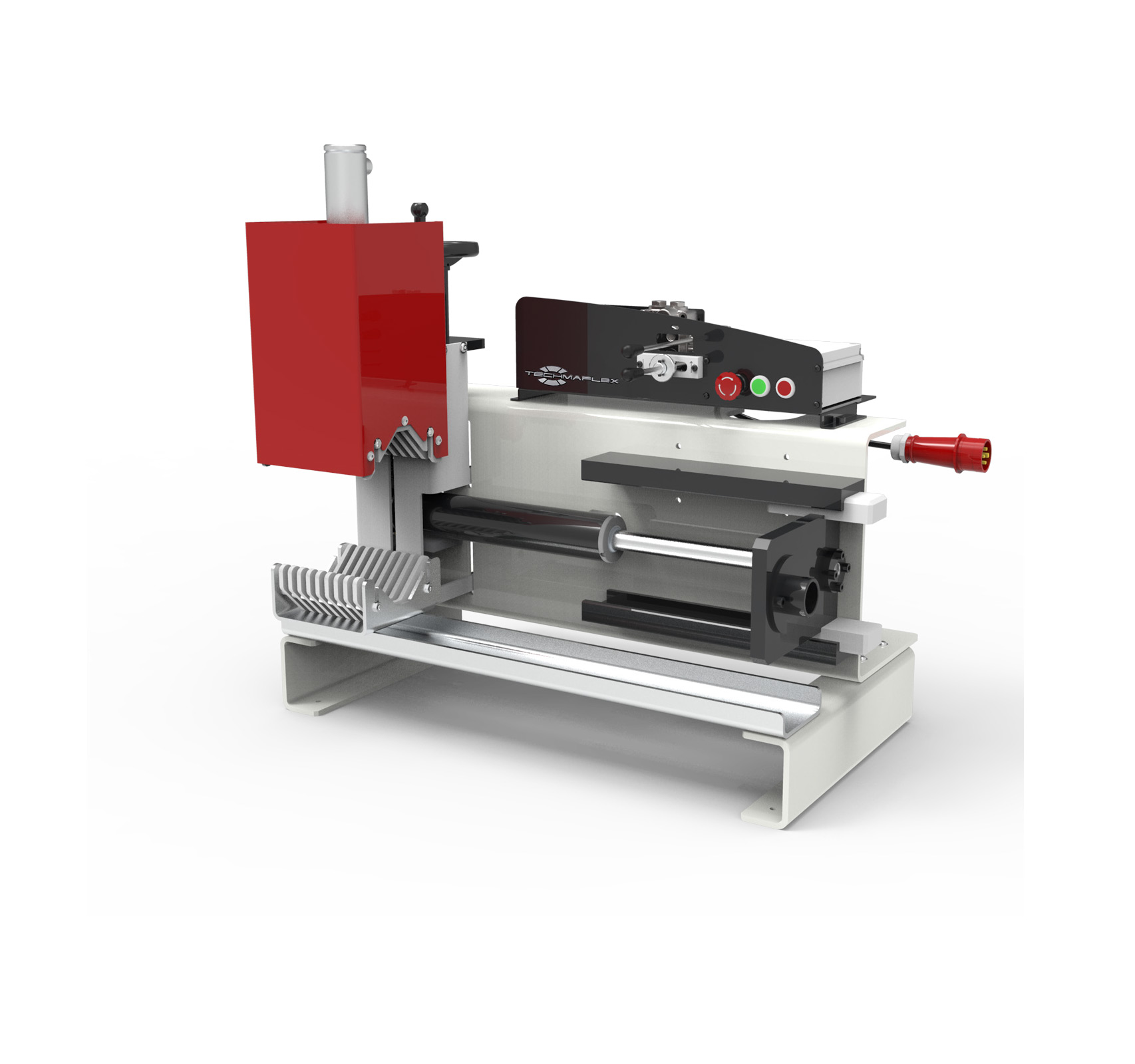

S PUSH 2000
Expert Service Line
Benchtop Coupling Inserter
KEY FEATURES:
- Compact
- Sturdy
- Powerful hydraulic cylinder
- Insert centring device
- Joystick operated clamping and insertion
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY | 6 WS: 3/4″ – 2″ with special tool 6 WS: 2″ – 4″ Industrial: 6″ |
| INSERTION SPEED* | 28 mm/s |
| INSERTION STROKE | 300 mm |
| INSERTION FORCE | 2 000 daN |
| POWER* | 1.5 KW |
| DIMENSIONS | 800 x 500 x 900 mm (31 x 20 x 35“) |
| VOLTAGES | 380/415, 3 Ph, 50Hz |
| MAXIMUM FLANGE | 250 mm |
| CLAMPING LENGTH | 200 mm |
| NET WEIGHT | 150 kg (330lb) |
* with electrical version

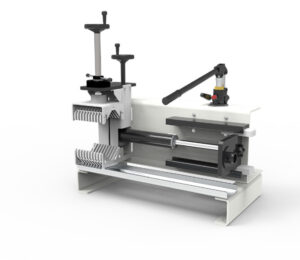

Hydraulic Manual Version
Video
