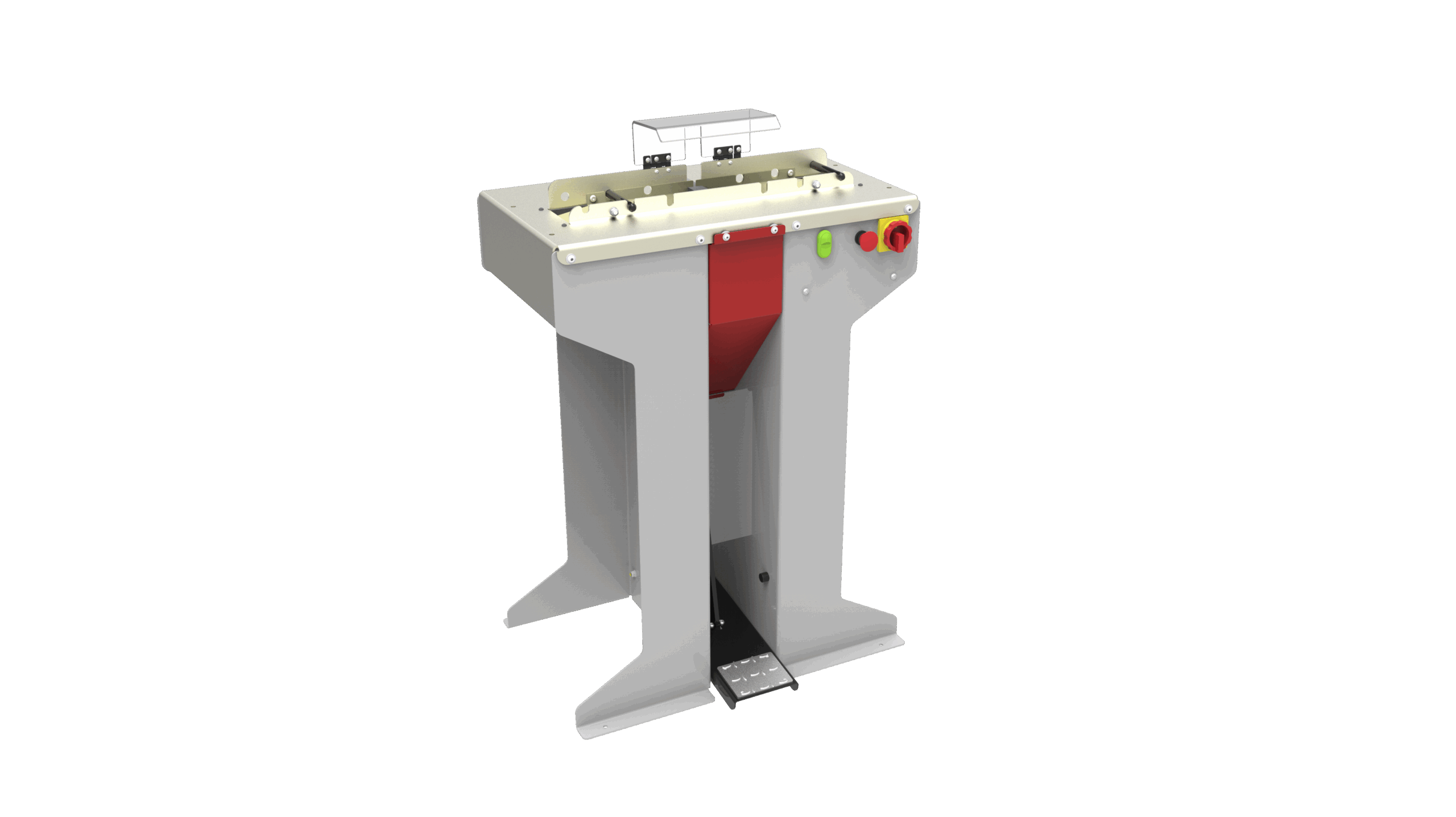

S-CUT 30 L
Starter & Professional Workshop
Stand Type Cutting Machine
KEY FEATURES:
- Compact design
- Easy and safe to use
- Scalloped blade for clean cut
- High performance and efficient cutting with minimal smoke
- Ergonomic, easy to clean
- Integrated dust collector
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY | 2 WB: 2″ max 4 WS: 2″ max 6 WS: 1¼″ max Industrial: 2″ max |
| ROTATION SPEED | 3000 rpm |
| SCALLOPED BLADE DIAMETER | 254 MM (10″) |
| MAX HOSE OD. | 85 mm (3.34″) |
| MOTOR | 3.0 KW |
| VOLTAGES | 220/240 V, 1Ph, 50/60 Hz 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz Other voltages available on request |
| DIMENSIONS | 765 x 500 x 1150 mm (30 x 20 x 45 “) |
| PACKAGING | 800 x 600 x 1200 mm (32 x 24 x 47“) |
| NET WEIGHT | 92 kg (203 lb) |
| GROSS WEIGHT | 120 kg (265 lb) |
Single-phase S3 25% Service Factor
Accessories
 |
 |
 |
||
| Smoke Suction Connector | 1 Dust Collector | Scalloped Blade |
Add-Ons
 |
 |
 |
||
| Cutting Rail | Slotted Blade | Smoke Extractor |
