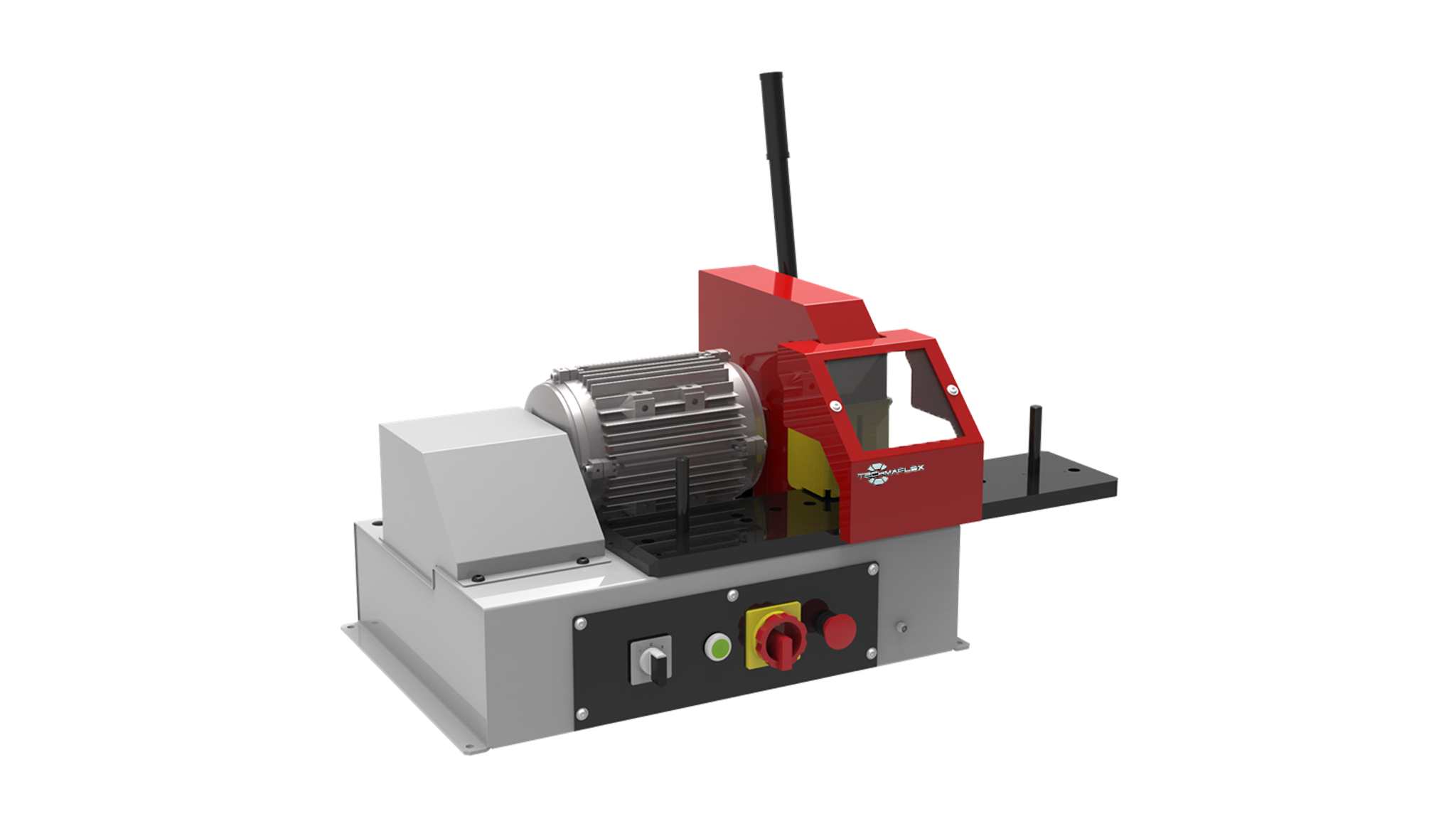

S-CUT 30 E
Starter & Professional Workshop Benchtop Cutting Machine, Optional Skiving
KEY FEATURES:
-
- Compact design
- Easy and safe to use
- Versatile, scalloped blade for high performance and efficient cutting with minimal smoke
- Dust Collector included
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY | 2 WB: 2″ max 4 WS: 2″ max 6 WS: 1¼″ max Industrial: 2″ max |
| ROTATION SPEED | 3000 rpm |
| SCALLOPED BLADE DIAMETER | 300 MM (11.8″) |
| MAX HOSE OD. | 85 mm (3.346″) |
| MOTOR | 3.0 KW |
| VOLTAGES | 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz Other voltages available on request |
| DIMENSIONS | 835 x 545 x 640 mm (33 x 21 x 25 “) |
| PACKAGING | 1170 x 770 x 1100 mm (46 x 30 x 43“) |
| NET WEIGHT | 75 kg (165 lb) |
| GROSS WEIGHT | 90 kg (198 lb) |
Accessories
 |
 |
|||
| Scalloped Blade | Dust Collector |
Add-Ons
 |
 |
|||
| Cutting Rail | Smoke Extractor |
