S-CUT 22 / V-CUT 22

» Products » S-CUT 22 / V-CUT 22

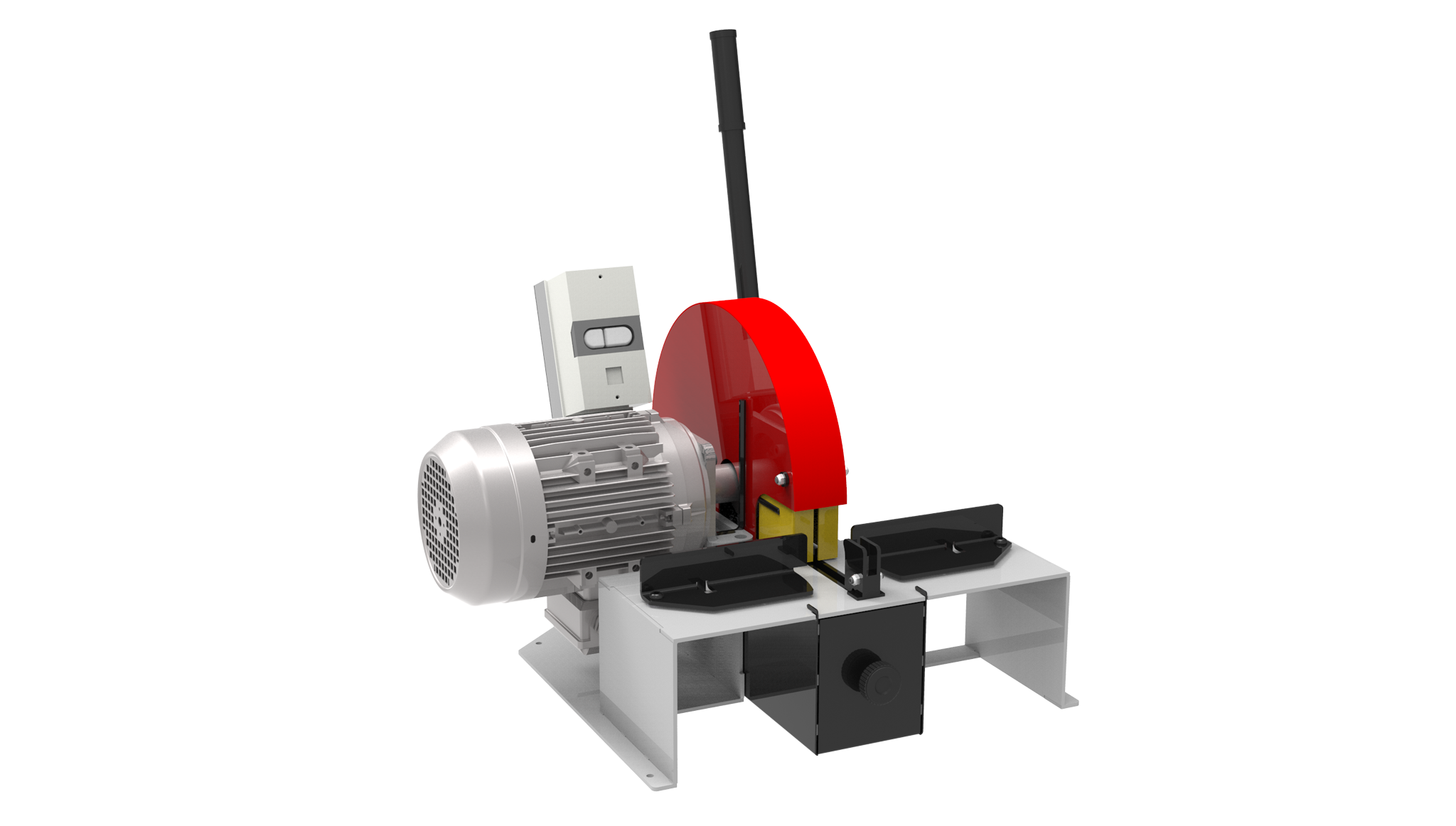

S-CUT-22-V-CUT-22

S-CUT 22 / V-CUT 22

Starter Workshop Benchtop Mobile Cutting Machine

KEY FEATURES:

  • Smooth bending system
  • 90° cut
  • Clean cut
  • Scalloped blade
  • Dust collector included
  • Multiple voltage options

INDUSTRIES:

Techmaflex - Market Icon - Hydraulics
Hydraulic

Technical Specifications

CAPACITY 2 WB: 1¼″ max
4 WS: 1¼″ max
ROTATION SPEED 3000 rpm
SCALLOPED BLADE DIAMETER 254 MM (10″) included
MAX HOSE OD. 50 mm (1.969″)
MOTOR 2.2 KW
VOLTAGES 220/240 V, 1Ph, 50/60 Hz
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
12/24 V also available upon request
DIMENSIONS 630 x 485 x 650 mm (25 x 19 x 26 “)
PACKAGING 800 x 600 x 830 mm (31 x 24 x 33“)
NET WEIGHT 42 kg (93 lb)
GROSS WEIGHT 42 kg (93 lb)
TECHNICAL FEATURES Dimensions van type machine: 488 x 630 x 650 mm (19.2 x 24.8 x 25.6“); 38 kg (84 lb)

Single-Phase S3 25% Service Factor

Accessories

Cutting-Scallop-Blade Cutting-Dust-Collector-2
Scalloped Blade Dust Collector

Add-Ons

Cutting-Battery Cutting-Slotted-Blades Cutting-Smoke-Extractor-2
Battery Slotted Blade Smoke Extractor *except version 12/24V

Documentation

FR – S – V CUT 22

EN – S – V CUT 22

ES – S – V CUT 22

DE – S – V CUT 22

IT – S – V CUT 22
