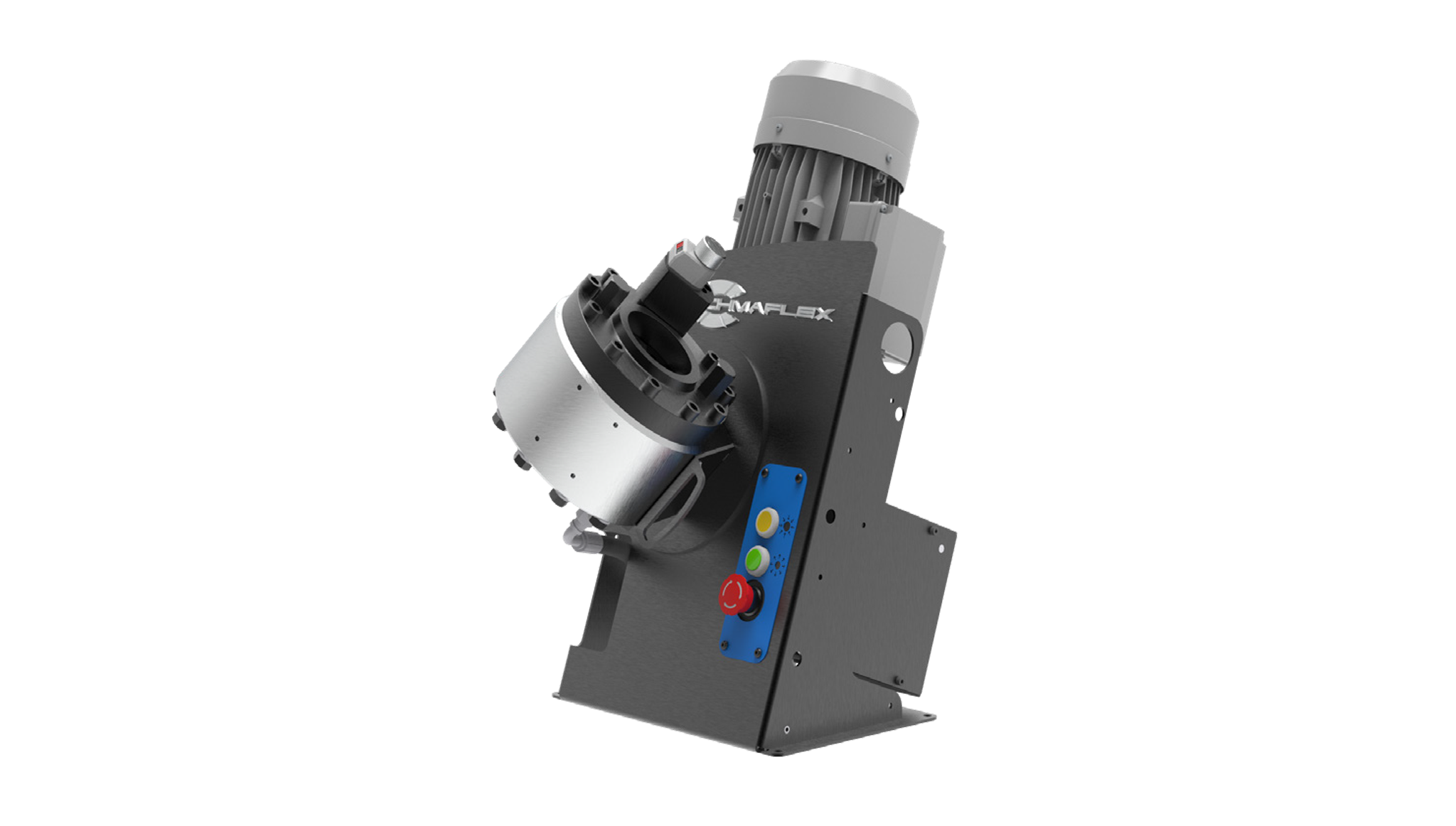

S CRIMP 70 EVO R
Maintenance Workshop
Vertical Benchtop
KEY FEATURES:
- Ergonomically positioned adjustable head
- Axis of the head situated perpendicular to the operator
- Compact
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY* | 2 WB: 1″ max 4ws: 3/4” max |
| CRIMP RANGE | 6 – 43 mm (0.236 – 1.692”) |
| CRIMP FORCE | 70 t |
| OPENING WITH DIES | +20 mm (+0.787”) |
| COMPLETE OPENING | 59 mm (2.323”) |
| MASTER DIE LENGTH | 60 mm (2.362”) |
| STANDARD DIES | 06, 08, 10, 12, 15, 18, 21, 24, 27, 30. |
| NOISE LEVEL | 70 bB A |
| MOTOR | 4.0 kW |
| VOLTAGES | 220/240 V, 1Ph, 50 Hz, 380/415V, 3Ph + N, 50Hz Others voltages available on request |
| DIMENSIONS | 360 x 530 x 620 mm (14 x 21 x 25”) |
| NET WEIGHT | 58 kg ( 128 lb) |
| GROSS WEIGHT | 71 kg (156 lb) |
* Indicative capacities depending on hose and fitting type
Add-Ons
 |
||||
| Maintenance Kits |
