S-CRIMP 450-200/P
XXL Workshop
KEY FEATURES:
- High Crimp force (450 tonnes)
- Large opening
- Wide family of dies for industrial hoses
- Long master dies
- Robust & Ergonomic
- Mettalic guard for the set stop

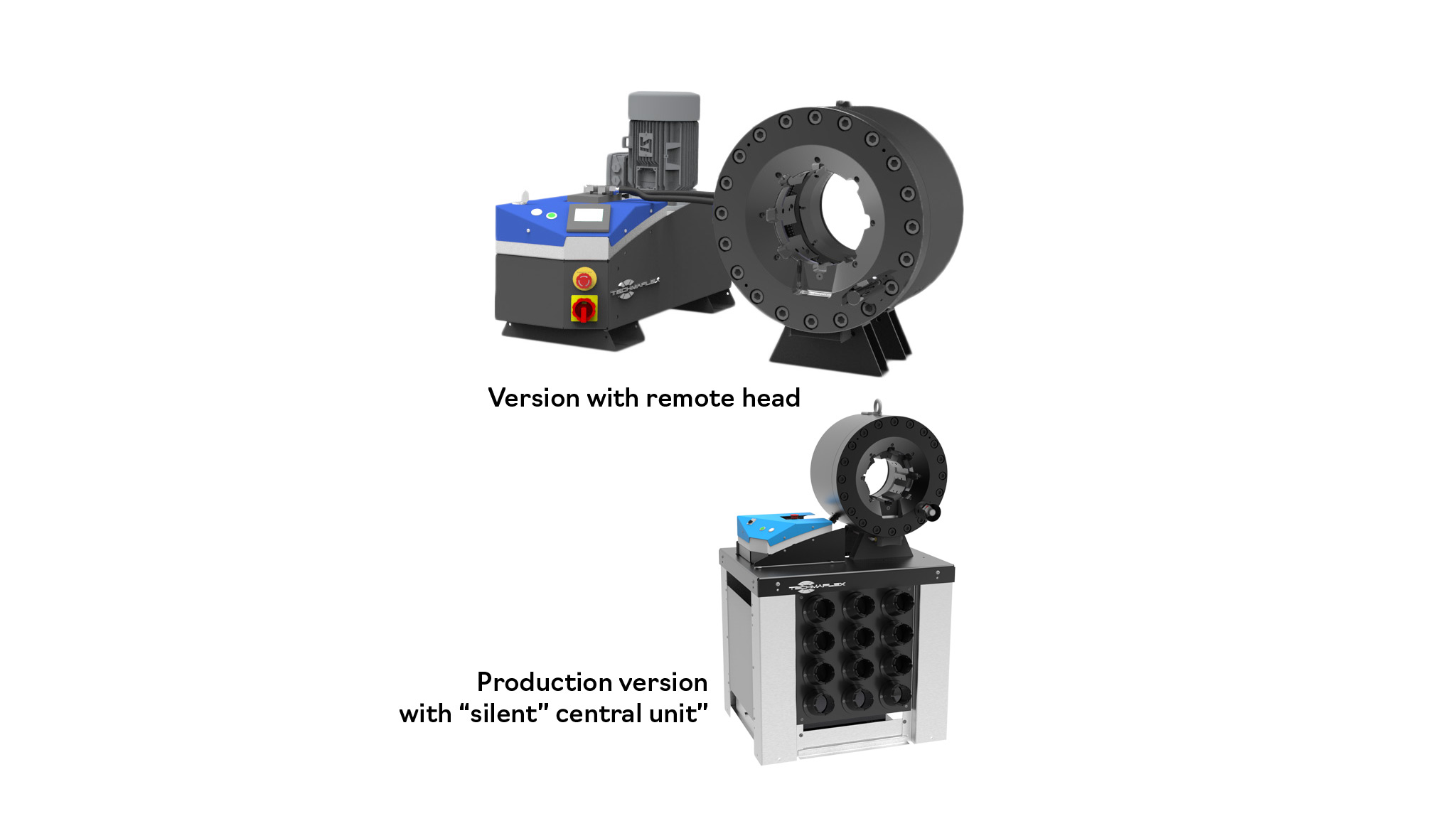

- Separated crimping head allowing flexible workshop arrangements
Production option:
- “silent” central unit with 50 L tank
- Table with racks EVO
- 3 control panels available
INDUSTRIES:
 Hydraulic |
 Industrial |
Technical Specifications
| CAPACITY* | Industrial: 4” & 6” |
| CRIMP RANGE | 4 – 180 mm (0.157 – 7.087”) |
| CRIMP FORCE | 450 t |
| OPENING WITH DIES | +70 mm (+2.755”) |
| MASTER DIE OPENING*** | 270 mm (10.629”) |
| MASTER DIE LENGTH | 125 mm (4.921”) |
| STANDARD DIES | 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70, 73, 76 Dies up to 180 mm available on request |
| MOTOR | 5.5 kW |
| VOLTAGES | 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz 380/415 V, 3Ph, 60 Hz |
| DIMENSIONS | 830 x 775 x 1450 mm (33 x 31 x 57”) |
| PACKAGING | 1120 x 1020 x 1770 mm (44 x 40 x 70”) |
| NET WEIGHT | 450 kg (992 lb) 750 kg (pro version) |
* Indicative capacities depending on hose and fitting type
** working stroke 24 mm
*** Full passage 230 mm
Add-Ons
 |
 |
 |
 |
 |
| Die Storage Panel | Die Storage Table EVO | Digital Caliper | Aluminium Quick Change Gun | Electrical Footswitch |
 |
 |
|||
| Marking Dies | Die Sets for Brake & Air Conditioning Hoses |
Optional
 |
 |
 |
||
| SC | SCE | SCS |
