S-CRIMP 420 EVO
Assembling For Field Repair
Benchtop Crimping Machine
KEY FEATURES:
- High Crimping force of 420 tonnes
- Robust design for transport and operation in harsh environments
- Protected cylinders for trouble-free operation in high dust environments
- Large opening suitable for large bore hoses
- Easy maintenance due to dust collector foam pads

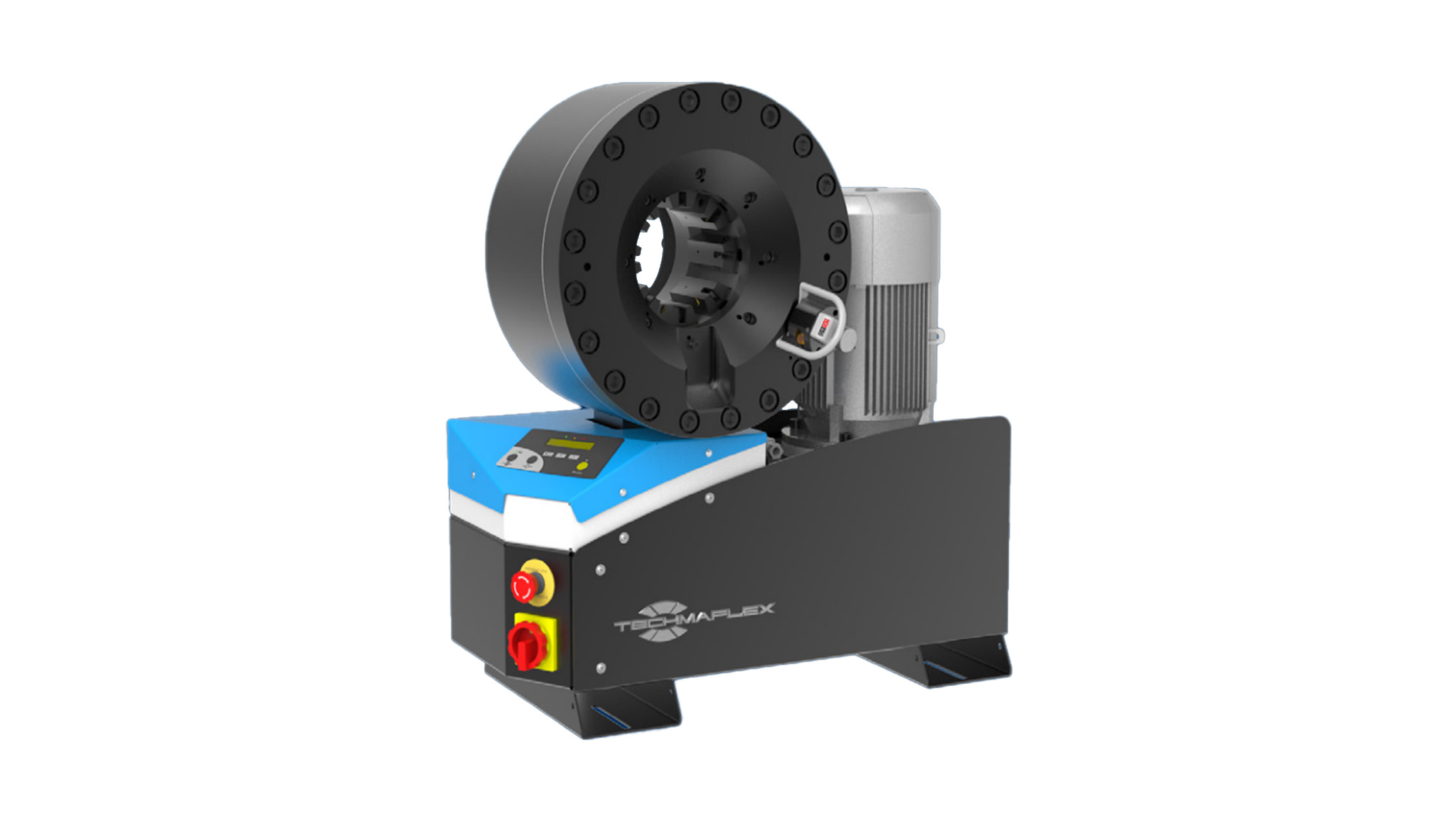

- Model shown equipped with SC control panel
INDUSTRIES:
 Hydraulic |
 Industrial |
Technical Specifications
| CAPACITY* | 6ws: 3” max. Industrial: 4” max. |
| CRIMP RANGE | 4 – 130 mm (0.157 – 5.118”) |
| CRIMP FORCE | 420 t |
| OPENING WITH DIES | +48 mm (+1.9 inch) |
| COMPLETE OPENING | 178 mm (7.0 inch) |
| MASTER DIE LENGTH | 120 mm (4.724 inch) |
| STANDARD DIES | 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70, 73, 76 |
| NOISE LEVEL | <70 dB A |
| MOTOR | 5.5 kW |
| VOLTAGES | 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz 380/415 V, 3Ph, 60 Hz |
| DIMENSIONS | 765 x 500 x 800 mm (30 x 20 x 32“) |
| PACKAGING | 745 x 1150 x 945 mm (29 x 45 x 37”) |
| NET WEIGHT | 395 kg (871 lb) |
* Indicative capacities depending on hose and fitting type
Add-Ons
 |
 |
 |
 |
 |
| Maintenance Kits | Die Storage Panel | Die Storage Table | Die Storage Table EVO | Electrical Footswitch |
 |
 |
 |
 |
 |
| Aluminium Quick Change Gun | Digital Caliper | Die SEts for Brake & Air Conditioning Hoses | Marking Dies | Die Storage Panel EVO |
 |
||||
| Mechanical Backstop |
Control Options
Available on request.
 |
 |
 |
||
| SC | SCE | SCS |
Video
