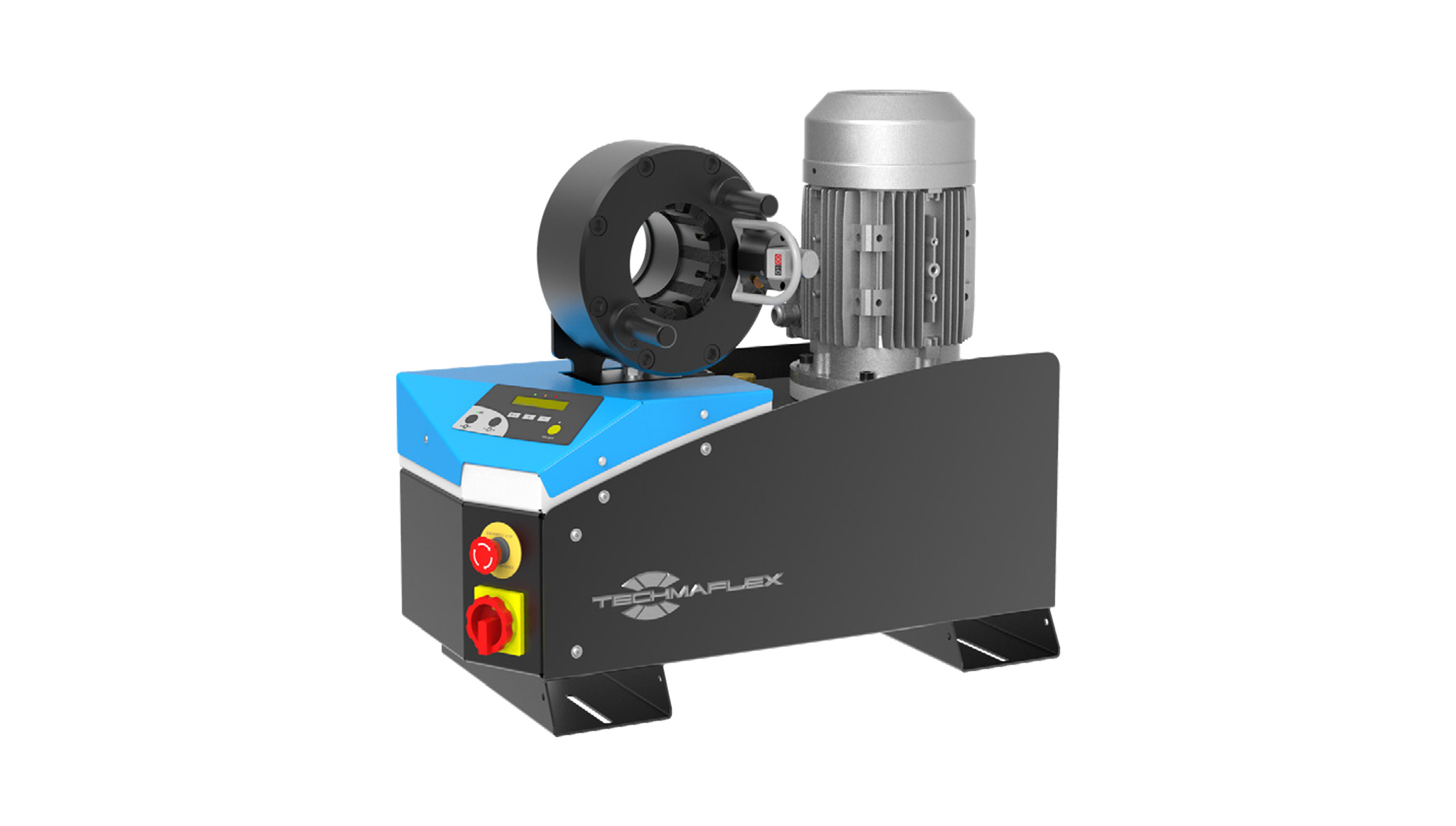

S-CRIMP 137 EVO
Assembling For Field Repair
Benchtop Crimp Machine
KEY FEATURES:
- Easy to use and robust
- Extensive range of dies to suit crimping of hydraulic hoses
- Easy set up and maintenance
- Fast and reliable
- Digital micrometer
- Model shown equipped with SC control panel
- Crimp force of up to 137 tonnes for hoses up to 1”¼
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY* | 2wb / 4ws: 1”¼ max. Industrial: 1”1/2 max. |
| CRIMP RANGE | 4 – 70 mm (0.157 – 2.756”) |
| CRIMP FORCE | 137 t |
| OPENING WITH DIES | +28 mm (+1.102”) |
| COMPLETE OPENING | 108 mm (4,252”) |
| MASTER DIE LENGTH | 75 mm (2.953”) |
| STANDARD DIES | 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51 |
| NOISE LEVEL | 70 dB A |
| MOTOR | 4.0 kW |
| VOLTAGES | 220/240 V, 1Ph, 50/60 Hz 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz Other voltages available on request |
| DIMENSIONS | 765 x 400 x 650 mm (30 x 16 x 26”) |
| NET WEIGHT | 160 kg (353 lb) |
* Indicative capacities depending on hose and fitting type
Add-Ons
 |
 |
 |
 |
 |
| Maintenance Kits | Die Storage Panel | Die Storage Table | Die Storage Table EVO | Electrical Footswitch |
 |
 |
 |
 |
 |
| Aluminium Quick Change Gun | Digital Caliper | Die SEts for Brake & Air Conditioning Hoses | Marking Dies | Die Storage Panel EVO |
Control Options
Available on request.
 |
 |
 |
||
| SC | SCE | SCS |
