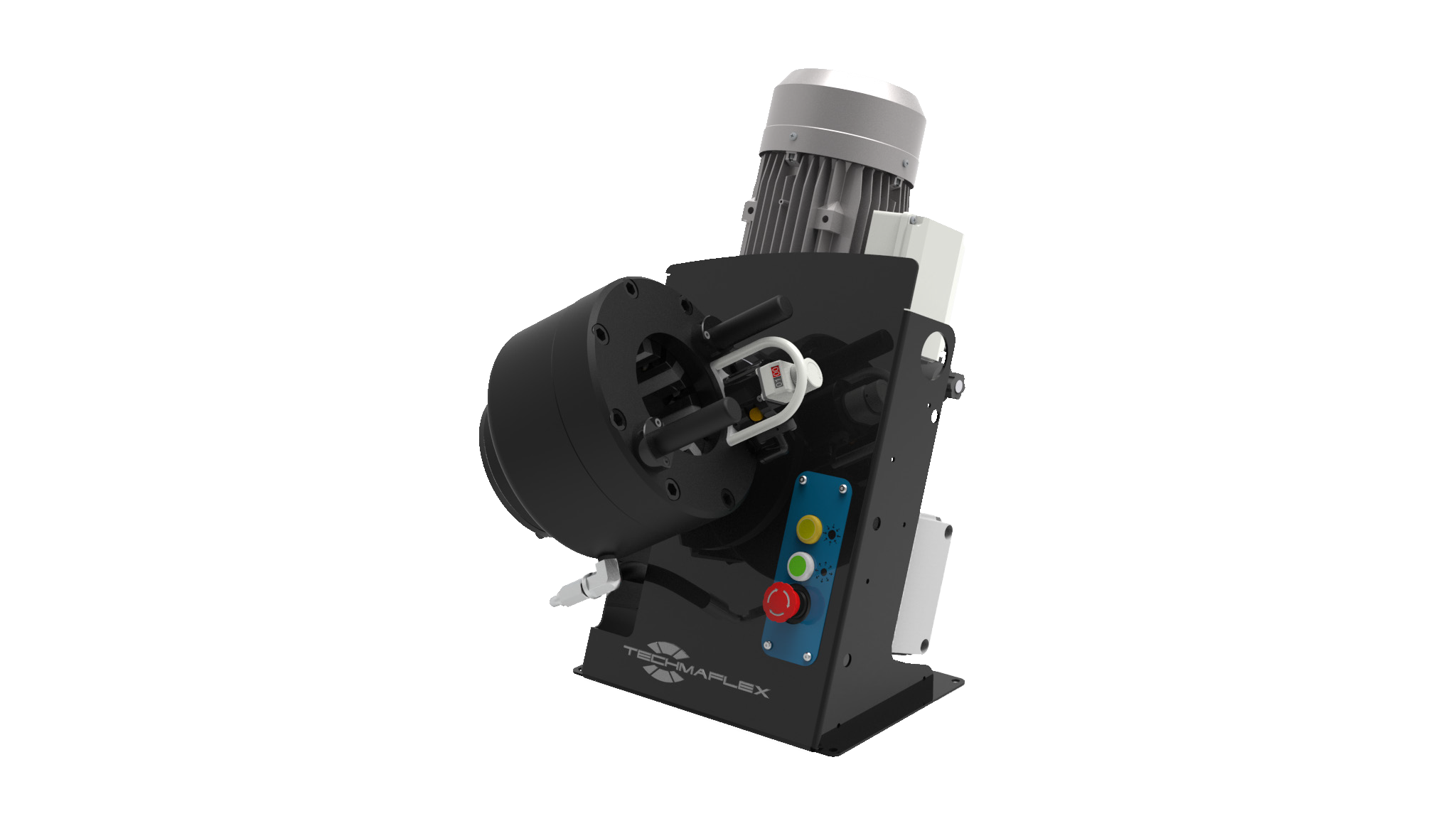

S-CRIMP 137 EVO R
Maintenance Workshop
Vertical Benchtop
KEY FEATURES:
- Ergonomically positioned adjustable head
- Axis of the head situated perpendicular to the operator
- Compact
INDUSTRIES:
 Hydraulic |
Technical Specifications
| CAPACITY* | 2wb / 4ws: 1”¼ max. Industrial: 1”1/2 max. |
| CRIMP RANGE | 4 – 70 mm (0.157 – 2.756”) |
| CRIMP FORCE | 137 t |
| OPENING WITH DIES | +28 mm (+1.102”) |
| COMPLETE OPENING | 108 mm (4,252”) |
| MASTER DIE LENGTH | 75 mm (2.953”) |
| STANDARD DIES | 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51 |
| NOISE LEVEL | 70 dB A |
| MOTOR | 1.5 kW (110V) 2.2 kW (230V) |
| VOLTAGES | 110 V, 1Ph, 60 Hz, 220/240 V, 1 Ph, 50 Hz, 380/415V, 3 Ph + N, 50 Hz, +12/24V Other voltages available on request |
| DIMENSIONS | 360 x 530 x 620 mm (14 x 21 x 25”) |
| NET WEIGHT | 85 kg (187 lb) |
| GROSS WEIGHT | 89 kg (196 lb) |
* Indicative capacities depending on hose and fitting type
Add-Ons
 |
 |
 |
 |
|
| Maintenance Kits | Aluminium Quick Change Gun | Die Storage Panel | Die Storage Panel EVO R |
