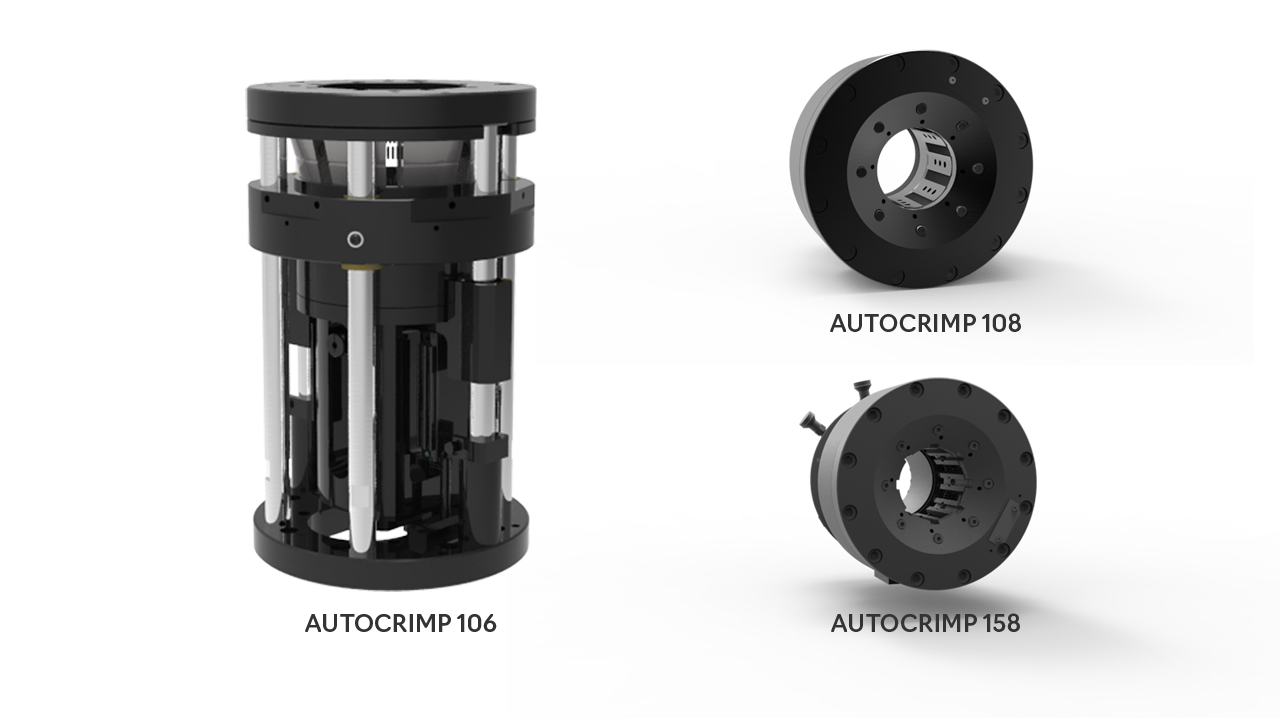

POP 106 – AUTOCRIMP 106-108-158
ASSEMBLY HEAD
AIRBAG
KEY FEATURES:
- Pneumatic or hydraulic power
- Compact head for easy integration into a production line
- Robust components for heavy series
- Low maintenance
- High Cpk / Cmk performances
INDUSTRIES:
 Automotive |
Technical Specifications
| CRIMP RANGE | 4 – 66 mm (0.157 – 2.598”) |
| CRIMP FORCE | 40 t |
| COMPLETE OPENING | 108 mm (4.252”) |
| OPENING WITH DIES | +28 mm (1.102”) |
| MASTER DIE LENGTH | 104 mm (4.094”) |
| DIAMETER WITH CLOSED MASTER DIES | 80 mm (3.150”) |
| POWER SOURCE | Hydraulic or pneumatic |
| CYCLE TIME | 2 – 10 s |
| MAX WORKING PRESSURE | 160 bar (2321 psi) |
Add-Ons
 |
 |
 |
||
| Speciial Die Sets (upon request) | Special Hydraulic Power Pack | Mechanical Set Stop |
