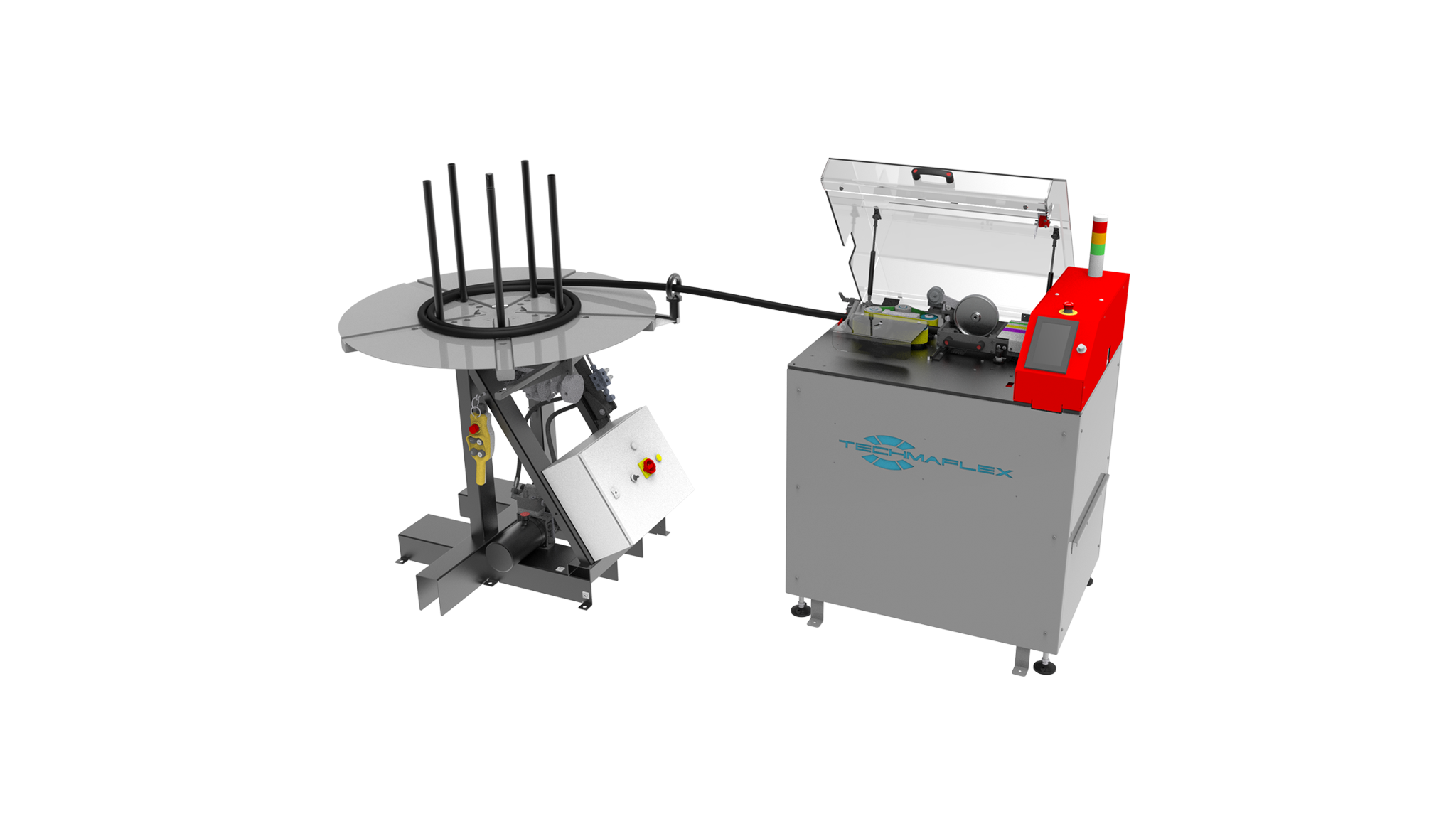

P Cut 40 Auto
Provided with its own automatic and tiltable decoiler, this automatic cutting equipment is the ideal tool for OEM hose assemblers.
Featured with 4 feeding tubes for hydraulic hoses with OD from 8 mm to 40 mm, and an infinite number of cutting operations, it enables a fast, easy and accurate production process.
INDUSTRIES:
 Hydraulic |
 Industrial |
Decoiler Specifications
| COL. INTERNAL DIAMETER | 200 – 600 mm |
| TILTING ANGLE | 0 – 85° |
| PLATE DIAMETER | 1200 mm |
| WEIGHT | 250 kg |
| DIMENSIONS | 1400 x 1250 x 1600 mm |
Cutting Specifications
| FEEDING TUBES DIAMETER | 11 mm 16 mm 26 mm 40 mm |
| SLOTTED* BLADED DIAMETER | 400 MM |
| MOTOR | 4.5 kW |
| MINIMUM CUTTING LENGTH | 250 MM |
| FEEDING SPEED | 0.5 m/s |
| ACCURACY | ± 1 % |
| MINIMUM AIRE PRESSURE | 6 bar |
| VOLTAGE | 380/415V – 3Ph – 50/60 Hz |
| WEIGHT | 380 kg |
| DIMENSIONS | 1100 x 800 x 1500 mm |
*Smooth blade available
**Adjustable cutting speed
For a safer environment when using the machine, a smoke extractor can be connected to the machine
Add-Ons
 |
||||
| Barcode Reader |
