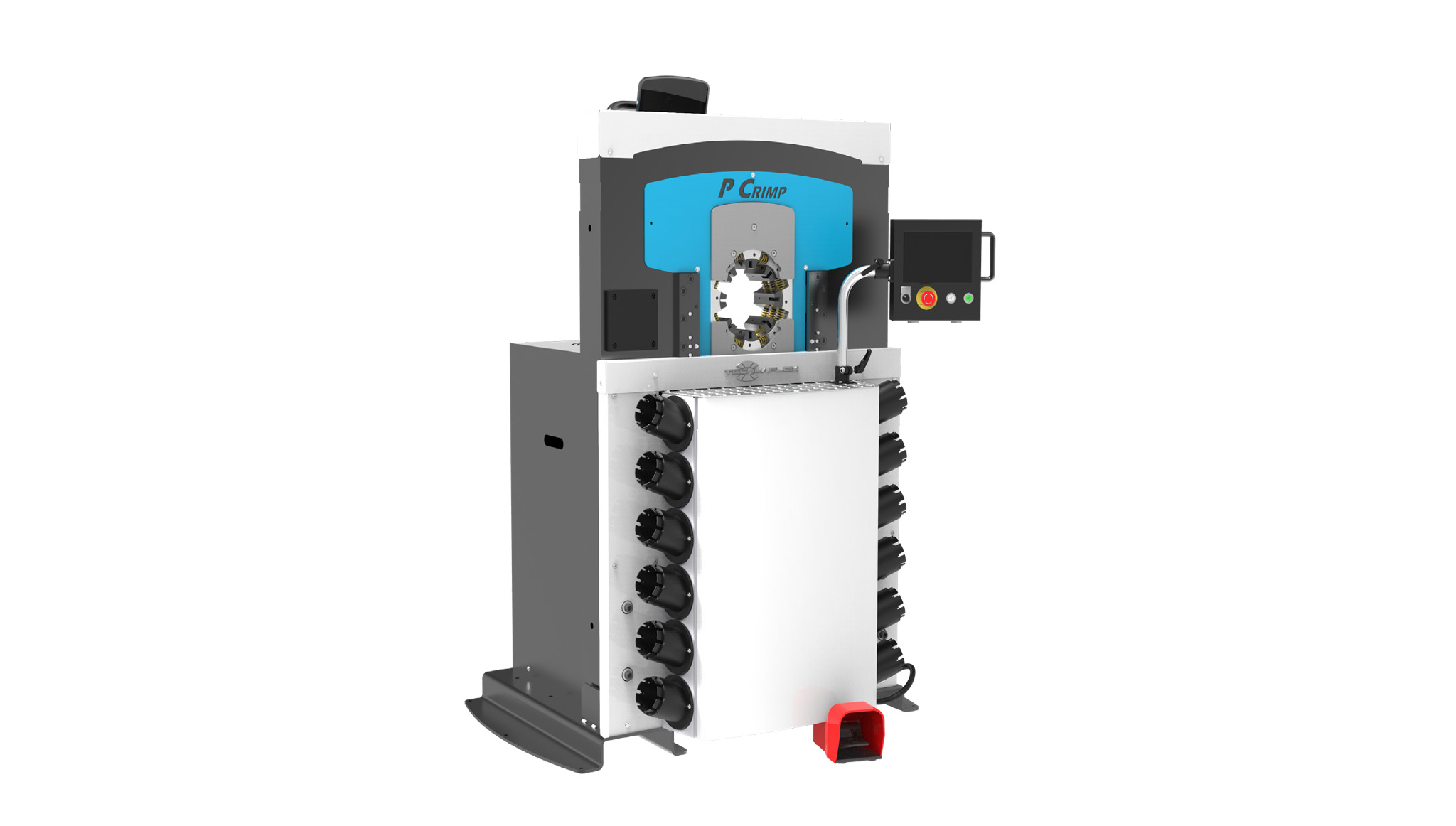

P-CRIMP 480
Assembling For Mass Production
Stand Type Crimp Machine
KEY FEATURES:
- High crimp force
- Large opening
- Safe Crimp System (SCS) control
- Wide family of dies for industrial hoses
- Long master dies
- Robust
- Low noise level
INDUSTRIES:
 Hydraulic |
 Industrial |
Technical Specifications
| CAPACITY* | 6ws: 2” max. Industrial: 4” max. |
| CRIMP RANGE | 4 – 160 mm (0.157 – 6.299”) |
| CRIMP FORCE | 480 t |
| OPENING WITH DIES | +85 mm (+3.346”) |
| COMPLETE OPENING | 212 mm (8.346”) |
| MASTER DIE LENGTH | 125 mm (4.921”) |
| STANDARD DIES | 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70, 73, 76 |
| NOISE LEVEL | <65 dB A |
| MOTOR | 5.5 kW |
| VOLTAGES | 220/240 V, 3Ph, 50 Hz 380/415 V, 3Ph, 50 Hz 208/240 V, 3Ph, 60 Hz 380/415 V, 3Ph, 60 Hz |
| DIMENSIONS | 1300 x 1050 x 1700 mm (51 x 41 x 67”) |
| PACKAGING | 1400 x 1100 x 1960 mm (55 x 43 x 77”) |
| NET WEIGHT | 1675 kg (3693 lb) |
| GROSS WEIGHT | 1890 kg (4167 lb) |
* Indicative capacities depending on hose and fitting type
Add-Ons
 |
 |
 |
 |
 |
| Die Storage Panel | Marking Dies | Back View Camera | Digital Caliper | Mechanical Backstop |
 |
 |
 |
||
| Side Table | Die Sets for Brake & Air Conditioning Hoses | Barcode Reader |
Optional
 |
 |
 |
 |
 |
| Aluminium Quick Change Gun | SCS Safe Crimp System | Mirror | Electrical Footswitch | Die Storage |
 |
||||
| Pushing Panel |
