N CRIMP 70/80

Home » Products » N CRIMP 70/80

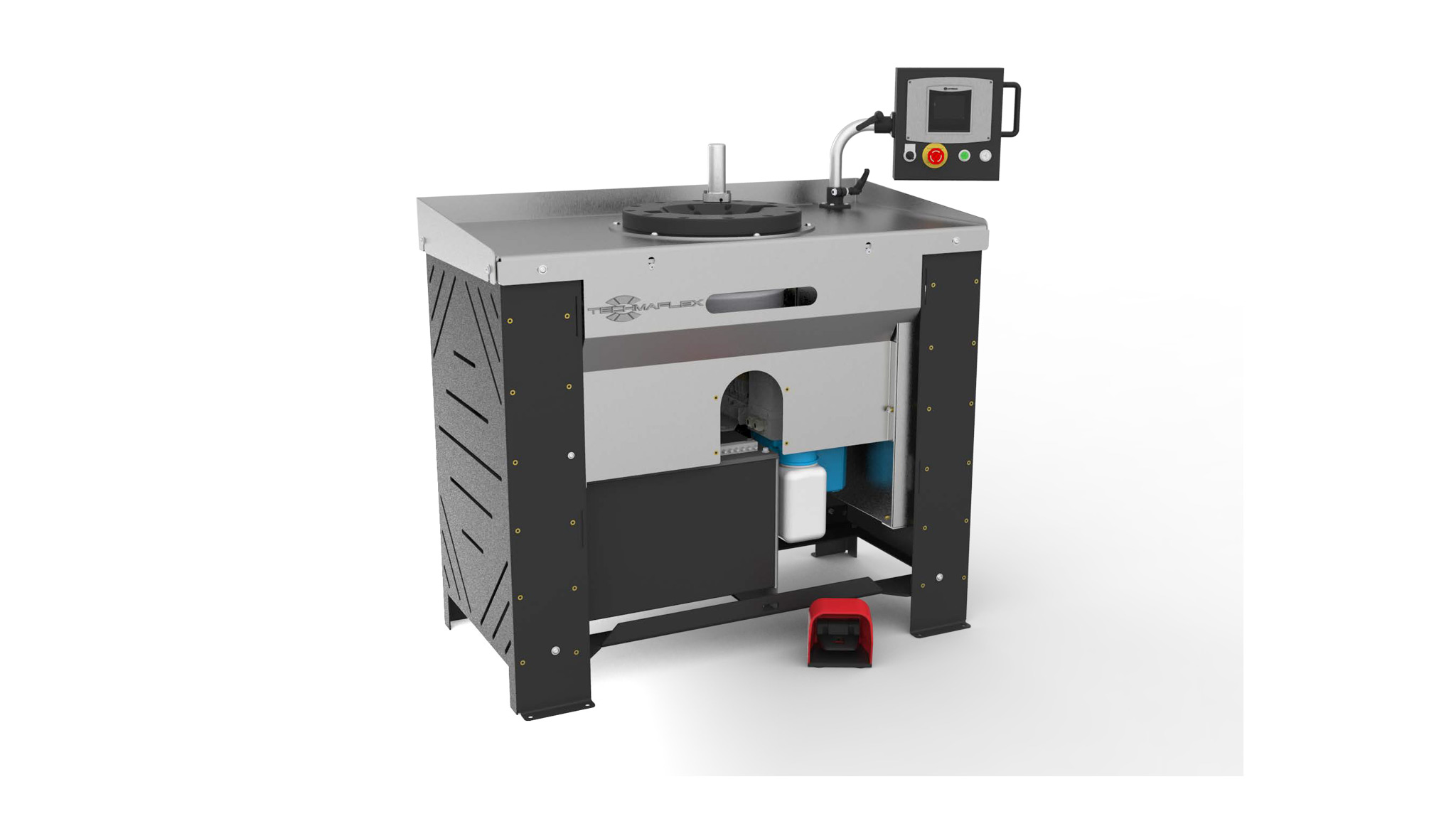

Crimping_Machine_N-Crimp-70-80

N CRIMP 70/80

PEP 108/158
Expert Service Line

KEY FEATURES:

  • Easy to use
  • Accurate
  • Robust die holder system Semi-automatic opening
  • High speed
  • Large opening
  • Large capacity
  • Available with SCE control panel

Technical Specifications

  N CRIMP 70 N CRIMP 80
CAPACITY* 1-1/2” 3″
CRIMP RANGE 4 – 60 mm (0.157 – 2.362”) 4 – 110 mm (0.157 – 4.331”)
CRIMP FORCE 70 t 80 t
COMPLETER OPENING 108 mm (4.252”) 156 mm (6.142”)
OPENING WITH DIES +28 mm (1.102”) +28 mm (1.102”)
MASTER DIE LENGTH 100 mm (3.937”) 125 mm (4.921”)
MOTOR 4 kW 4 kW
VOLTAGES 230V, 3Ph
400V, 3Ph		 230V, 3Ph
400V, 3Ph
DIMENSIONS 1120 x 560 x 940 mm
(44 x 22 x 37”)		 1120 x 560 x 940 mm
(44 x 22 x 37”)
PACKAGING 1200 x 850 x 1500 mm
(47 x 33 x 59”)		 1200 x 850 x 1500 mm
(47 x 33 x 59”)
NET WEIGHT 380 kg 450 kg

*Indicative capacities depending on the hose and fitting type

Add-Ons

Standard-Optional-Automatic-Central-Greasing Standard-Optional-Pre-Crimping-Die-Sets
Automatic Central Greasing Pump Pre-Crimping Die Sets

Optional

Control options available on request.

Crimping_Machine_Standard_SCS_Safe-Crimp-System
SCS Safe Crimp System

Documentation

FR – N CRIMP 70-80

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. For more information, please visit our dedicated ‘Contact’ page on the Techmaflex website.
